Component identification 134

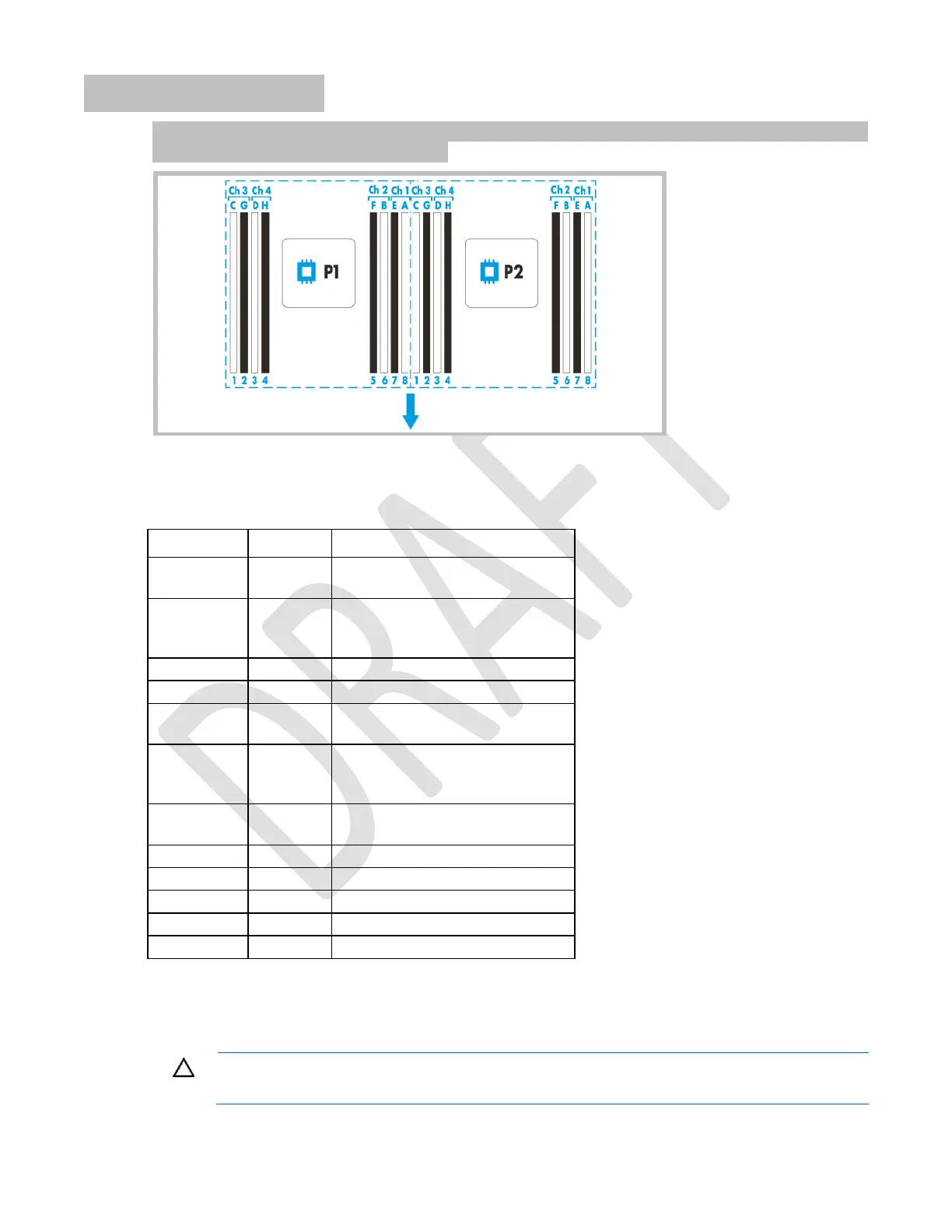

DIMM slot locations
DIMM slots are numbered sequentially (1 through 8) for each processor. The supported AMP modes use the
letter assignments for population guidelines.
The arrow points to the front of the server.
System maintenance switch
Off = iLO4 security is enabled.
On = iLO4 security is disabled.
Off = System configuration can be
changed.
On = System configuration is locked.
Off = Power-on password is enabled.
On = Power-on password is disabled.
Off = No function
On = ROM reads system configuration
as invalid.
Off = Set default boot mode to UEFI.
On = Set default boot mode to legacy.
To access the redundant ROM, set S1, S5, and S6 to on.
When the system maintenance switch position 6 is set to the On position, the system is prepared to erase all
system configuration settings from both CMOS and NVRAM.
CAUTION: Clearing CMOS and/or NVRAM deletes configuration information. Be sure to
properly configure the server or data loss could occur.
