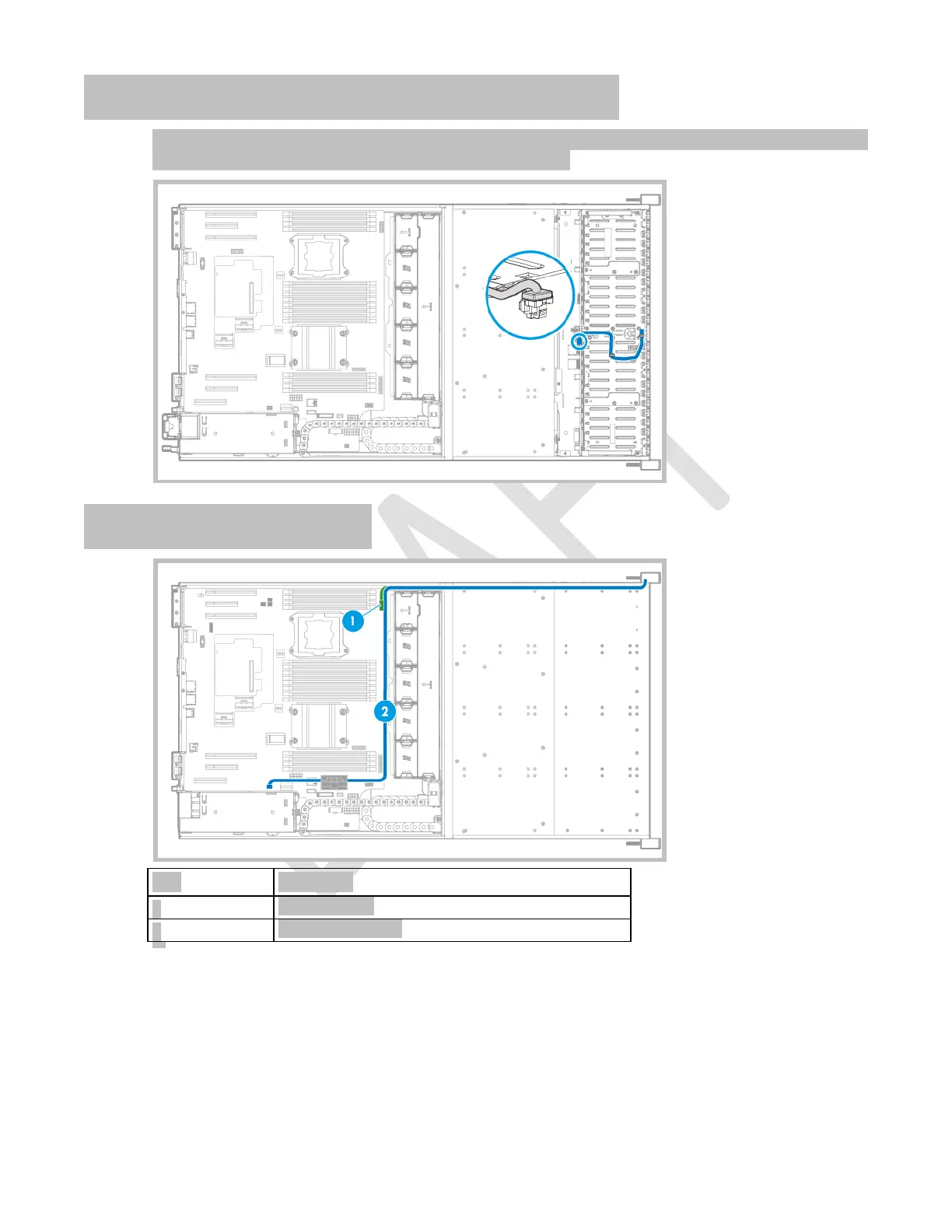

Ambient temperature sensor cabling
This cable is present in SFF drive configurations only; the ambient temperature sensor function in LFF drive
configurations is integrated in the front LFF drive backplane 1.
Front panel cabling
Item
Description
1
Front I/O cable
2
Front USB 2.0 cable
