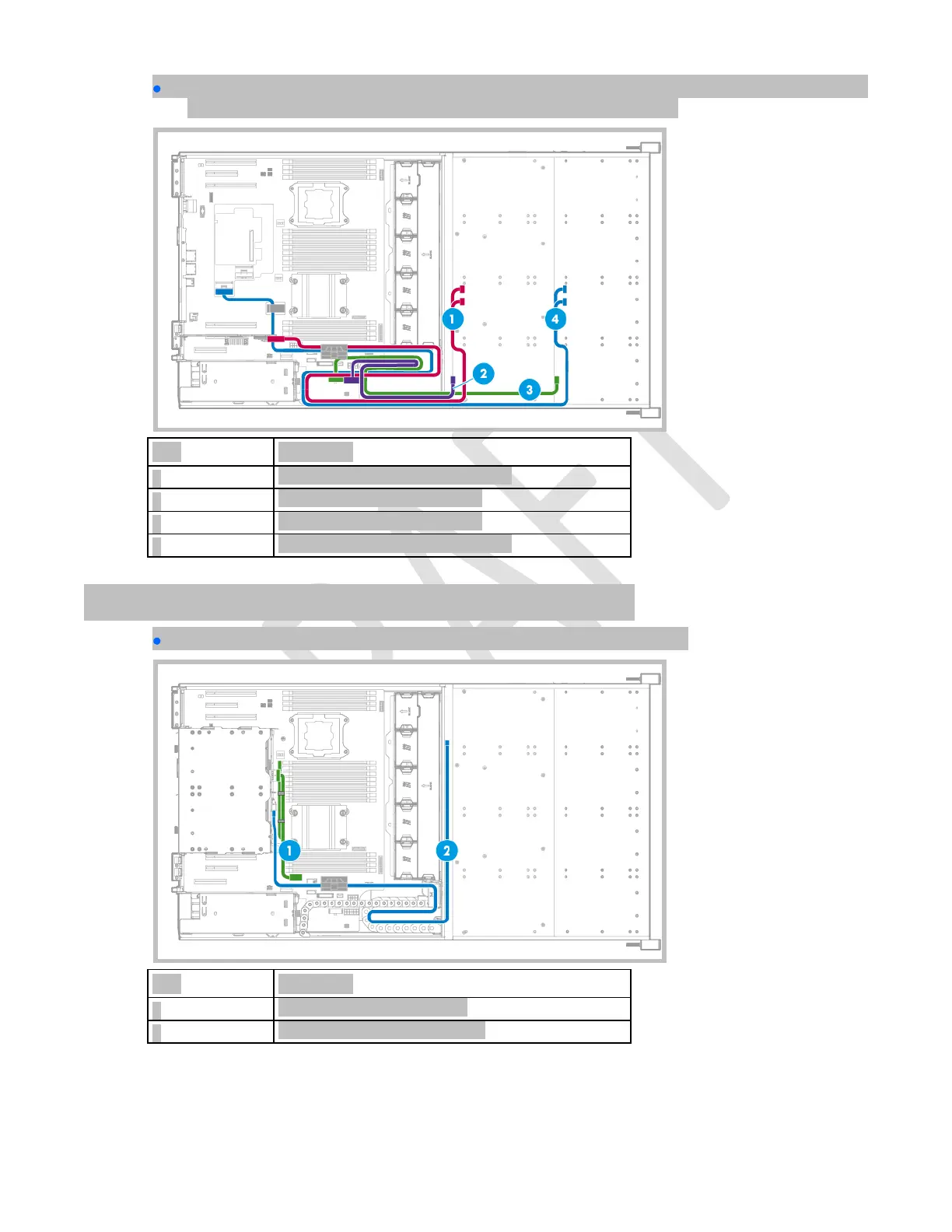

Cabling 141
Cabling for drive cage 1 SFF drives connected to the HP Flexible Smart Array P840ar Controller, and
drive cage 2 SFF drives connected to a HP Smart Array P440 Controller.
Item
Description
1
Mini-SAS Y-cable to front drive cage 2
2
Power cable to front drive cage 2
3
Power cable to front drive cage 1
4
Mini-SAS Y-cable to front drive cage 1
Four-bay LFF hot-plug rear drive cage cabling
Cabling for rear LFF drives connected to the front drive cage 2 backplane.
Item
Description
1
Power cable to rear drive cage
2
Mini-SAS cable to rear drive cage
