Removal and replacement procedures 68

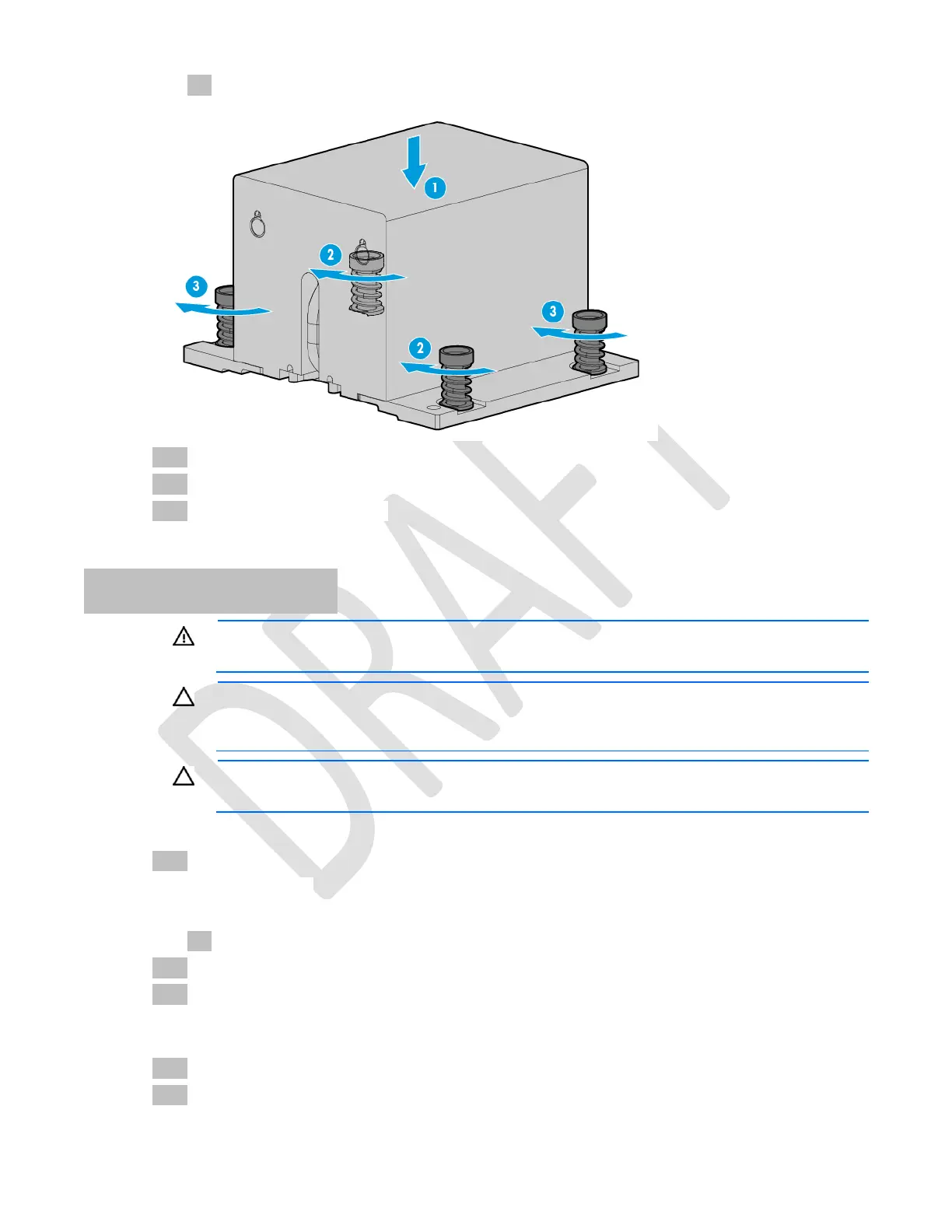

c. Finish the installation by completely tightening the screws in the same sequence.
4. Install the air baffle.
5. Install the access panel.
6. Install the server into the rack.
7. Power up the server.
Expansion board
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.
CAUTION: To prevent damage to electrical components, take the appropriate anti-static
precautions before beginning any installation, removal, or replacement procedure. Improper
grounding can cause electrostatic discharge.
CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless
all expansion slots have either an expansion slot cover or an expansion board installed.
To remove the component:
1. Power down the server (on page 17).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Remove the server from the rack (on page 27).
4. Remove the access panel ("Access panel" on page 36).
5. If you are removing an expansion board installed in the PCI riser cage, remove the riser cage ("Remove
the PCI riser cage" on page 30).
6. Disconnect any internal cables that are connected to the expansion board.
7. Remove the expansion board.
