HP Apollo 4200 Gen9 - 48-Bay SFF Hot-Plug SAS;SATA Front Drive Cabling

DRAFT - HP Confidential - DRAFT
Cabling 140

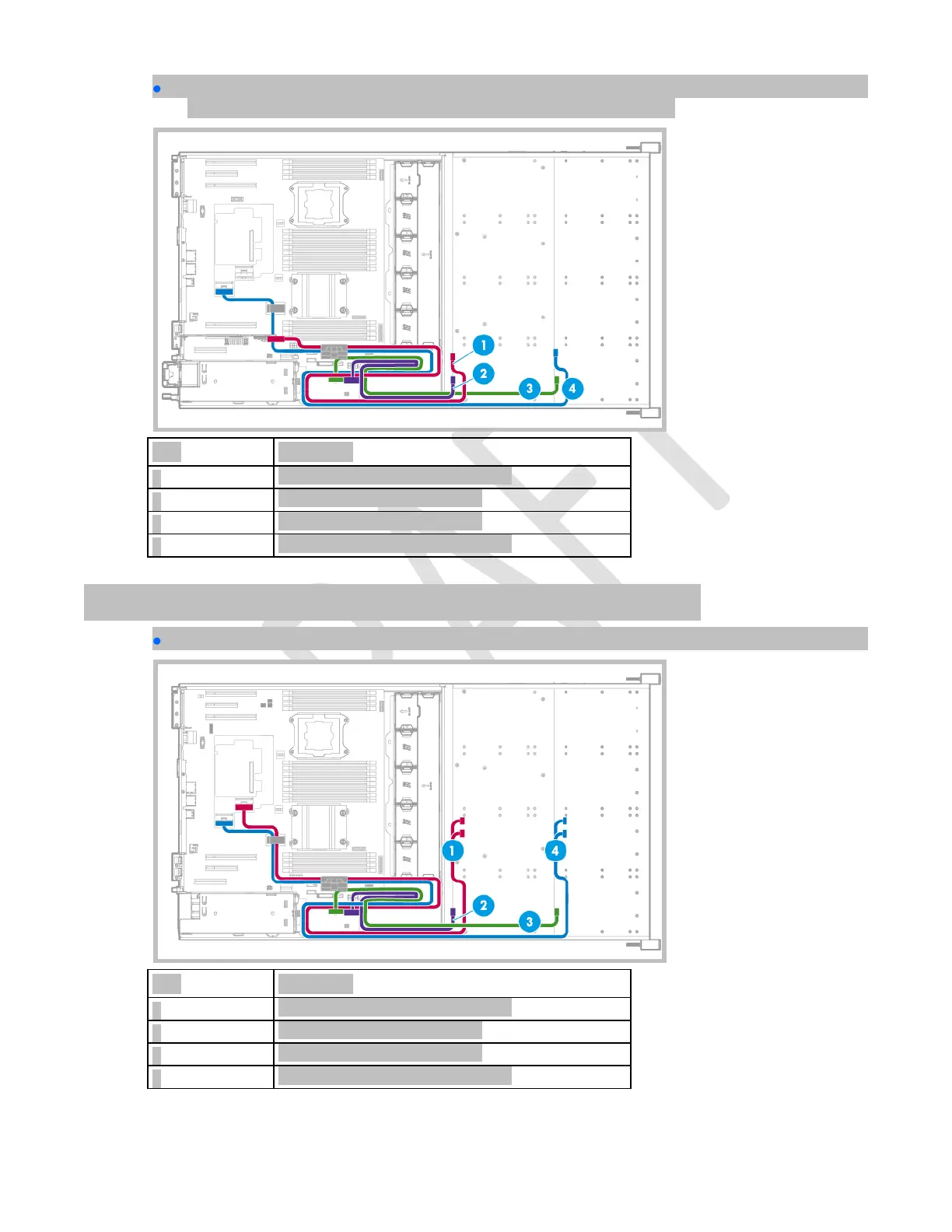

Cabling for drive cage 1 LFF drives connected to the HP Flexible Smart Array P840ar Controller, and
drive cage 2 LFF drives connected to a HP Smart Array P440 Controller.
Item
Description
1
Mini-SAS Y-cable to front drive cage 2
2
Power cable to front drive cage 2
3
Power cable to front drive cage 1
4
Mini-SAS Y-cable to front drive cage 1
48-bay SFF hot-plug SAS/SATA front drive cabling
Cabling for drive cage 1 and 2 SFF drives connected to the HP Flexible Smart Array P840ar Controller.
Item
Description
1
Mini-SAS Y-cable to front drive cage 2
2
Power cable to front drive cage 2
3
Power cable to front drive cage 1
4
Mini-SAS Y-cable to front drive cage 1
