Component identification 132
Item
Description
Status
5
UID LED
Solid blue = Activated
Flashing blue:
1 Hz/cycle per sec = Remote management
or firmware upgrade in progress
4 Hz/cycle per sec = iLO manual reboot
sequence initiated
8 Hz/cycle per sec = iLO manual reboot
sequence in progress
Off = Deactivated
6
Power supply LED
Solid green = Normal
Off = One or more of the following conditions
exists:
Power is unavailable
Power supply failed
Power supply is in standby mode
Power supply error
System board components

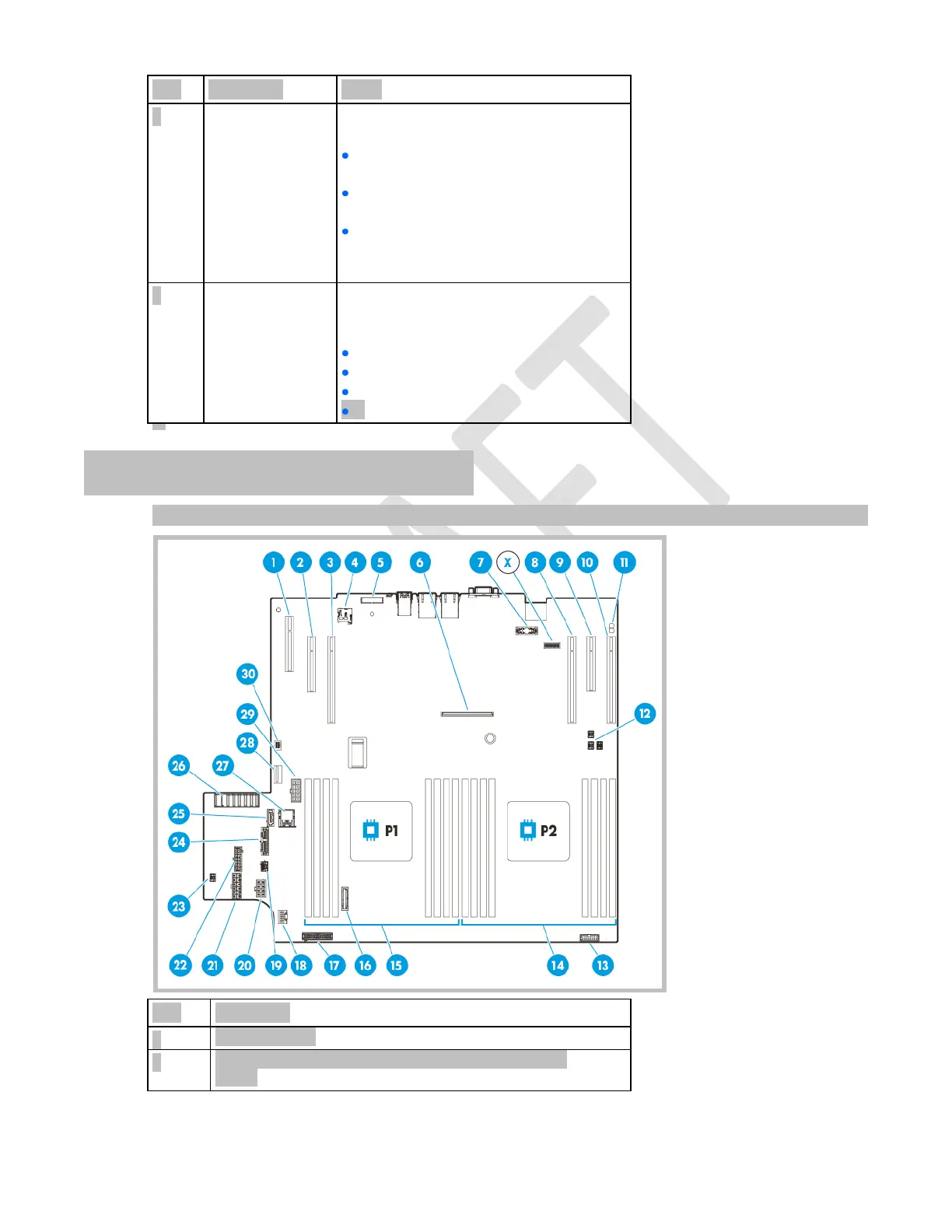

The components shown is this section are associated with the HP ProLiant XL420 Gen9 Server system board.
Item
Description
1
FlexibleLOM slot
2
PCIe3 x8 (8,4,1) slot 1 for low-profile, standup expansion
board
1
