DRAFT - HP Confidential - DRAFT
Removal and replacement procedures 25

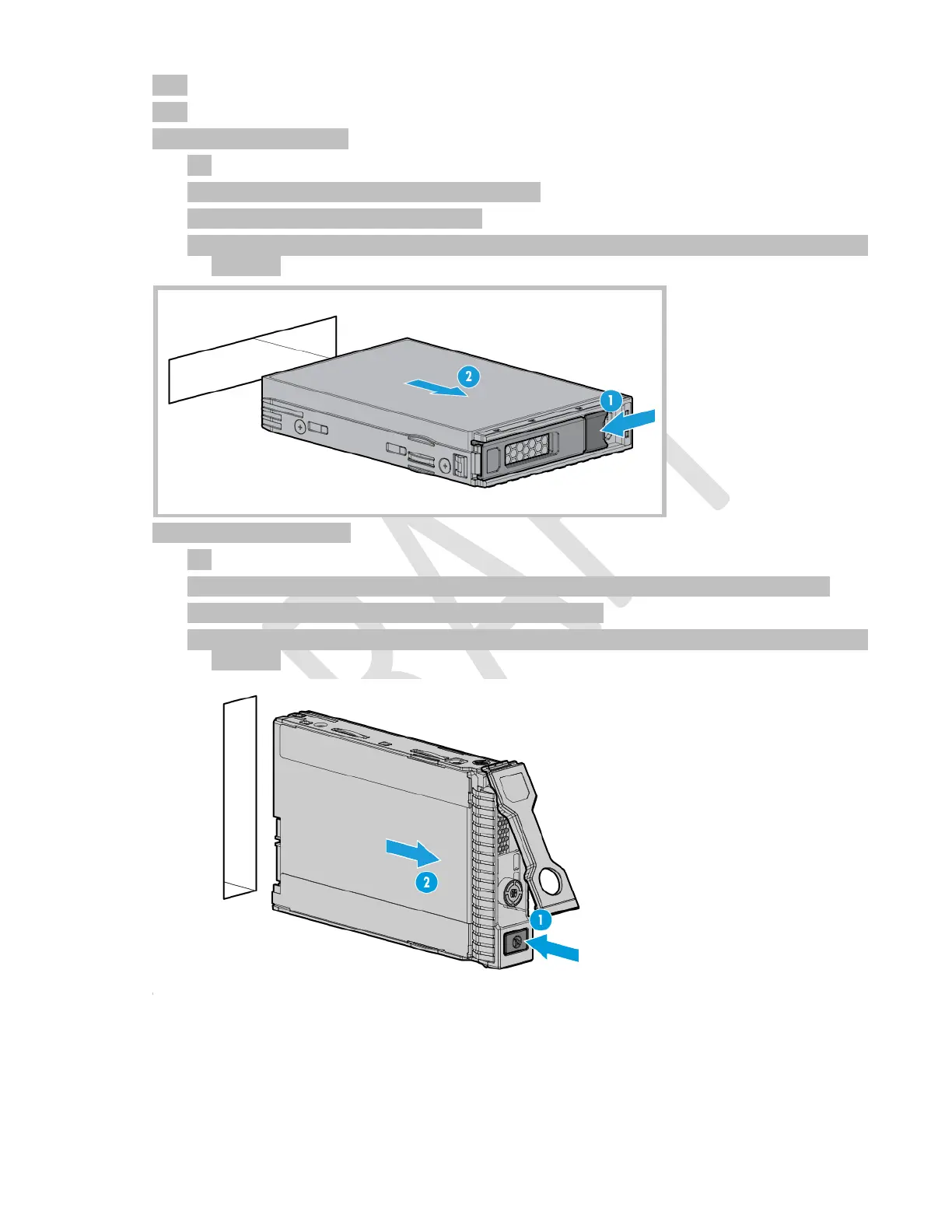

1. Back up all server data.
2. If installed, remove the security bezel (on page 24).
3. To remove an LFF drive:
a. Determine the status of the drive from the drive LED definitions.
b. Wait until the Online/Activity LED stops flashing.
c. Press the latch to open the release lever.
d. Pull the release lever to disengage the drive from the backplane, and then slide the drive out of the
drive bay.
4. To remove an SFF drive:
a. Determine the status of the drive from the drive LED definitions.
b. Wait until the icon in the Do Not Remove button stops flashing and is no longer illuminated.
c. Press the Do Not Remove button to open the release lever.
d. Pull the release lever to disengage the drive from the backplane, and then slide the drive out of the
drive bay.
