Removal and replacement procedures 63
4. Remove the access panel ("Access panel" on page 36).
5. Remove the air baffle ("Air baffle" on page 37).
6. Remove the heatsink ("Heatsink" on page 66).

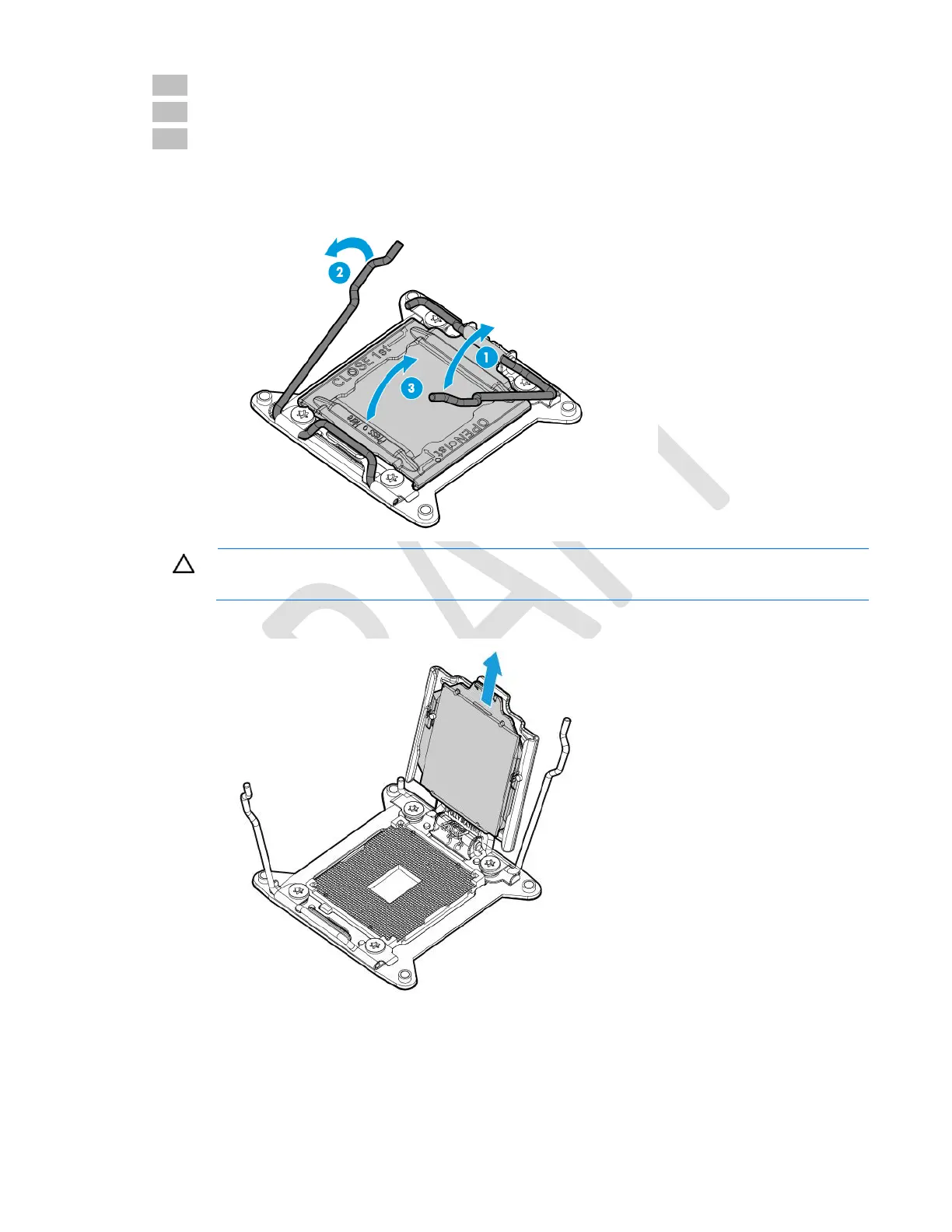

7. Open each of the processor locking levers in the order indicated, and then open the processor retaining
bracket.
CAUTION: THE PINS ON THE SYSTEM BOARD ARE VERY FRAGILE AND EASILY DAMAGED. To
avoid damage to the system board, do not touch the processor or the processor socket contacts.
8. Remove the processor from the processor retaining bracket.
