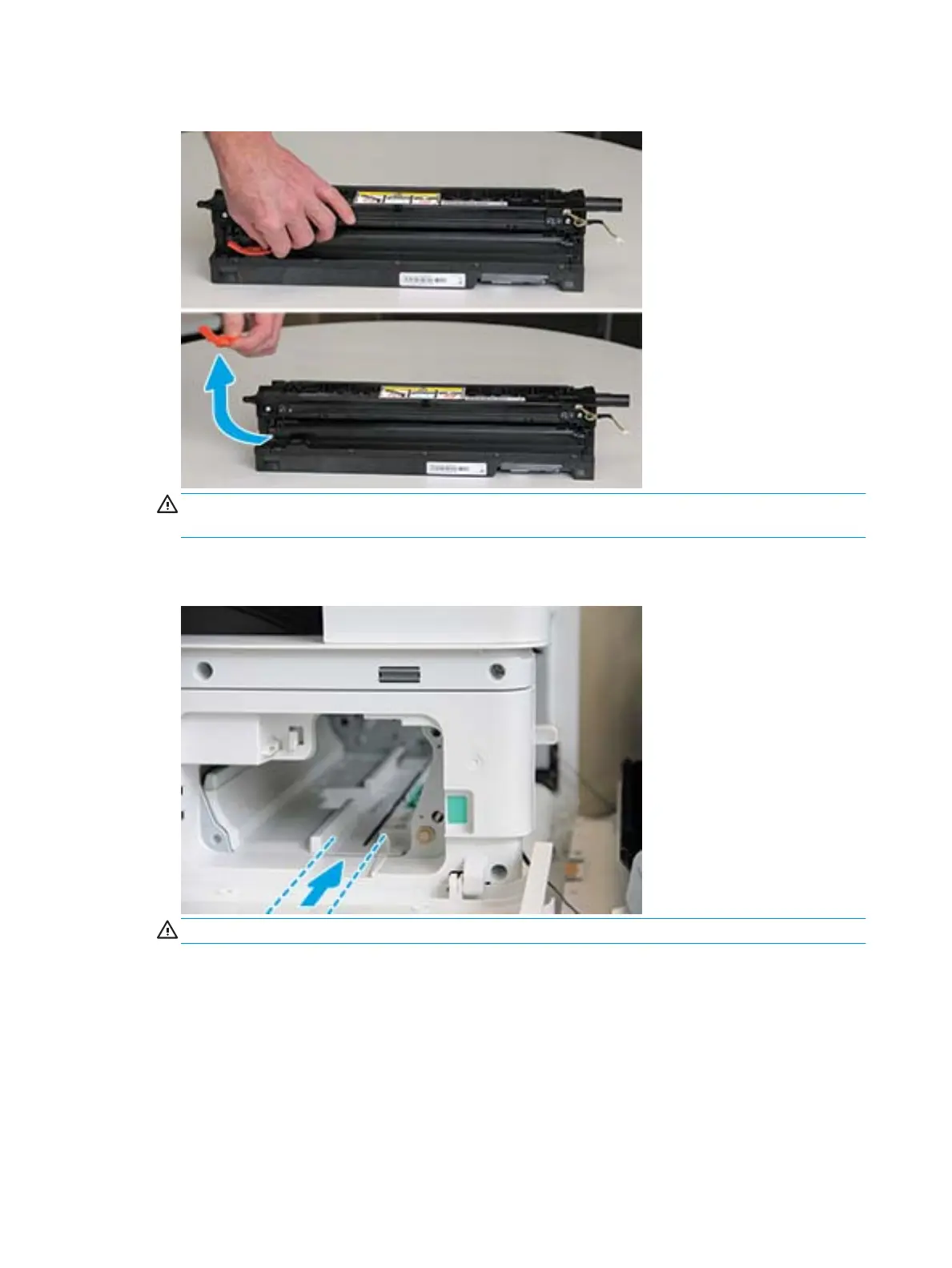

5. Remove orange plug on back of imaging unit
CAUTION: Once the plug is removed, the imaging unit must remain level. Contents may spill out if the
imaging unit is tipped.
6. With right and front doors fully open, carefully lift imaging unit into position, so the bottom of imaging unit
aligns with the raised alignment rails inside printer cabinet as shown.
CAUTION: Do not touch exposed drum roller surface.
84 Chapter 9 Maintenance ENWW
