9. Install the OCP NIC 3.0 adapter:

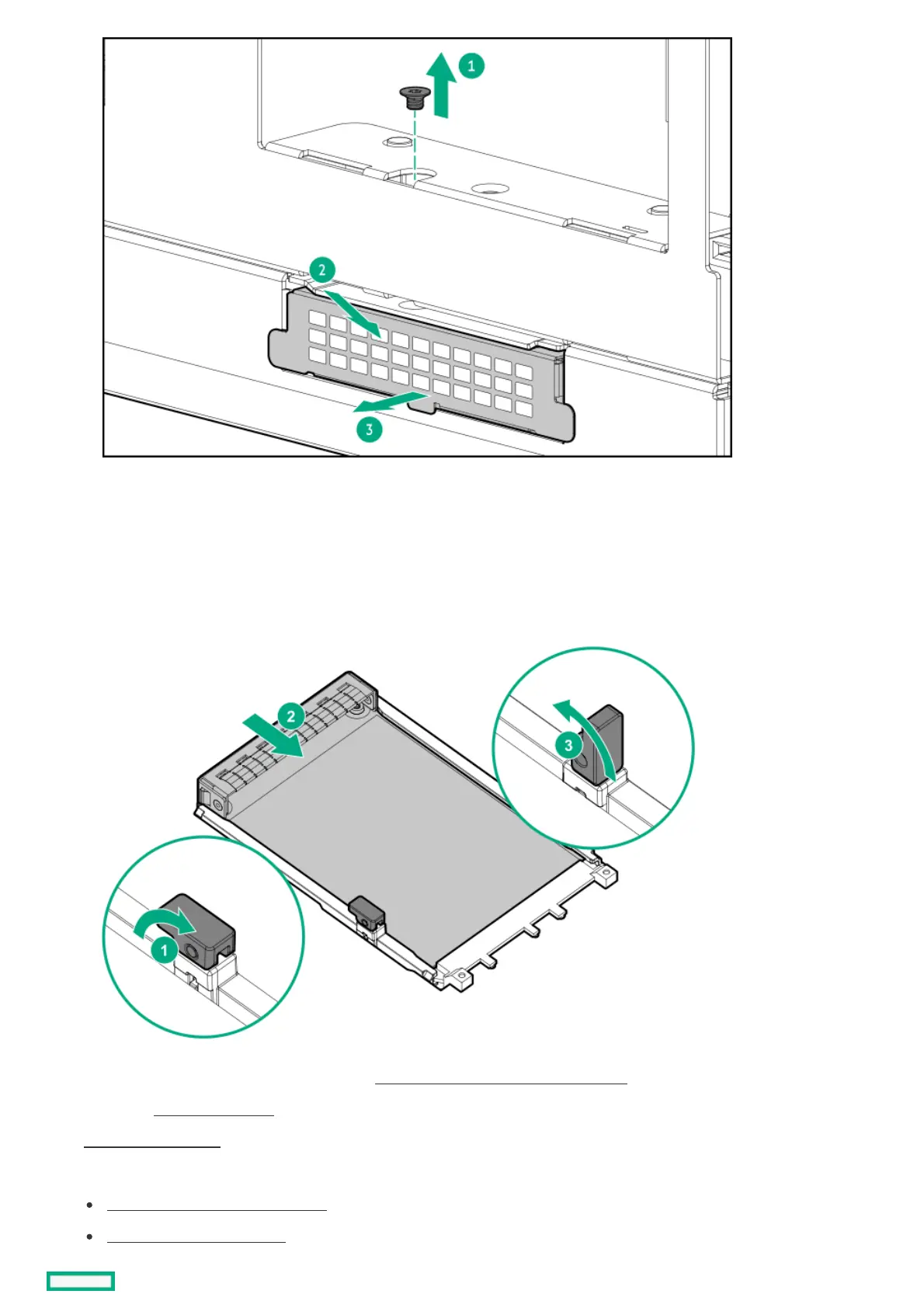

a. Rotate the locking pin to the open (vertical) position (callout 1).
b. Slide the adapter into the bay until it clicks into place (callout 2).
Make sure that the adapter is seated firmly in the slot.
c. Rotate the locking pin to the close (horizontal) position (callout 3).
10. If you are installing an OCP NIC 3.0 x16 adapter, connect the OCP bandwidth upgrade cable .
11. If removed, install the riser cage .
12. Install the access panel
13. Do one of the following:
Orient the server back in tower mode .
Install the server into the rack .
