Removing the shipping bracketsRemoving the shipping brackets
PrerequisitesPrerequisites
Before you perform this procedure, make sure that you have a T-25 Torx screwdriver available.
About this taskAbout this task
A server shipped in a rack is secured by shipping brackets. To allow the server tray to be extended out of the rack during normal server
operation, remove these shipping brackets.
ProcedureProcedure

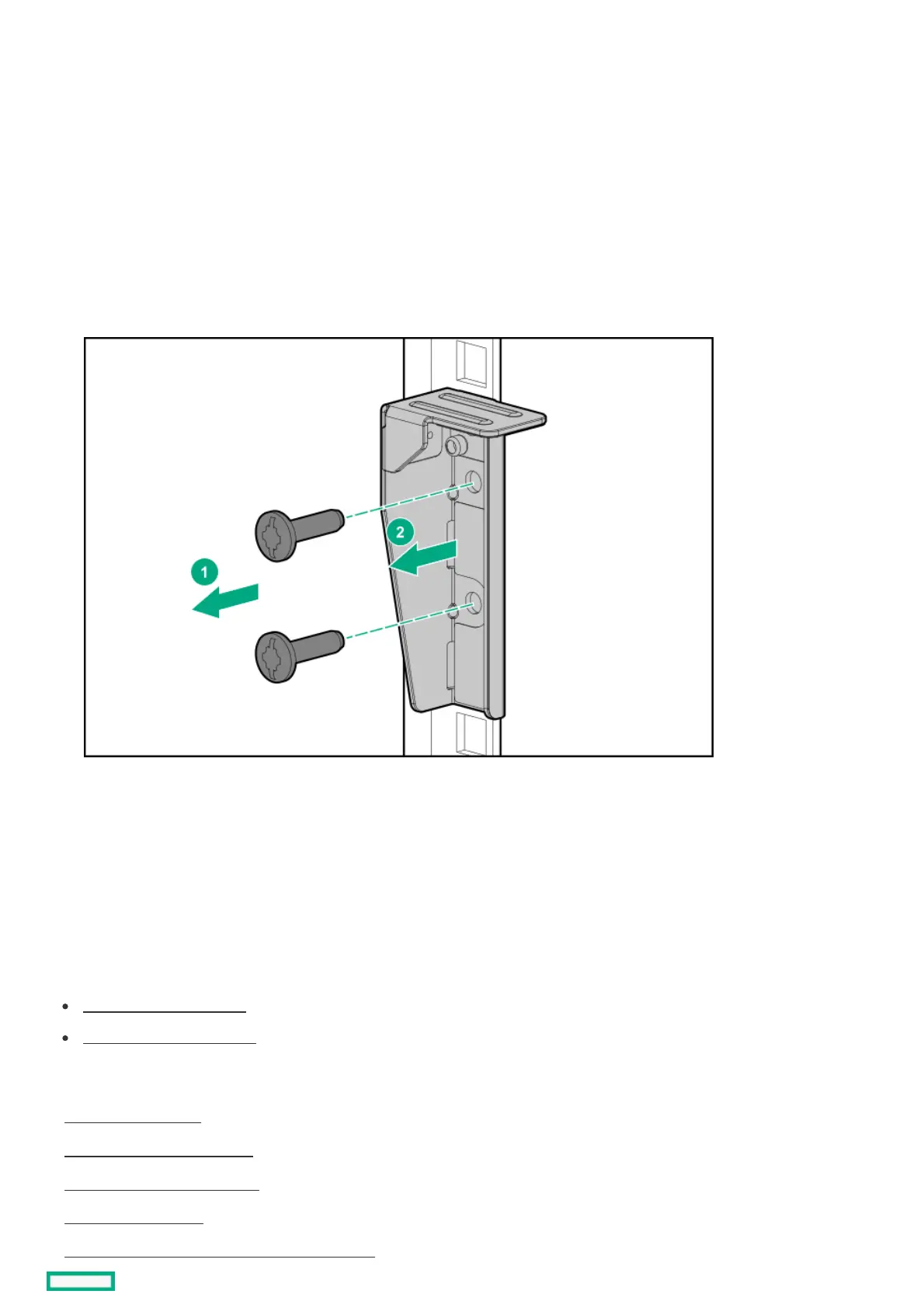

1. Remove the screws securing the shipping bracket.
2. Remove the shipping bracket from the front rack column.
3. Repeat steps 1–2 to remove the bracket from the other opposite rack column.
Retain the shipping brackets and screws in case there is a need to ship or transport the rack-mounted server at a later date.
OperationsOperations
This chapter describes the hardware operations carried out prior to and after installing or removing a hardware component, or
performing a server maintenance or troubleshooting procedure. Before performing these hardware operations, review the:
Rack warnings and cautions
Server warnings and cautions
SubtopicsSubtopics
Power down the serverPower down the server
Extend the server from the rackExtend the server from the rack
Remove the server from the rackRemove the server from the rack
Remove the front bezelRemove the front bezel
Position the tower server for hardware configurationPosition the tower server for hardware configuration
