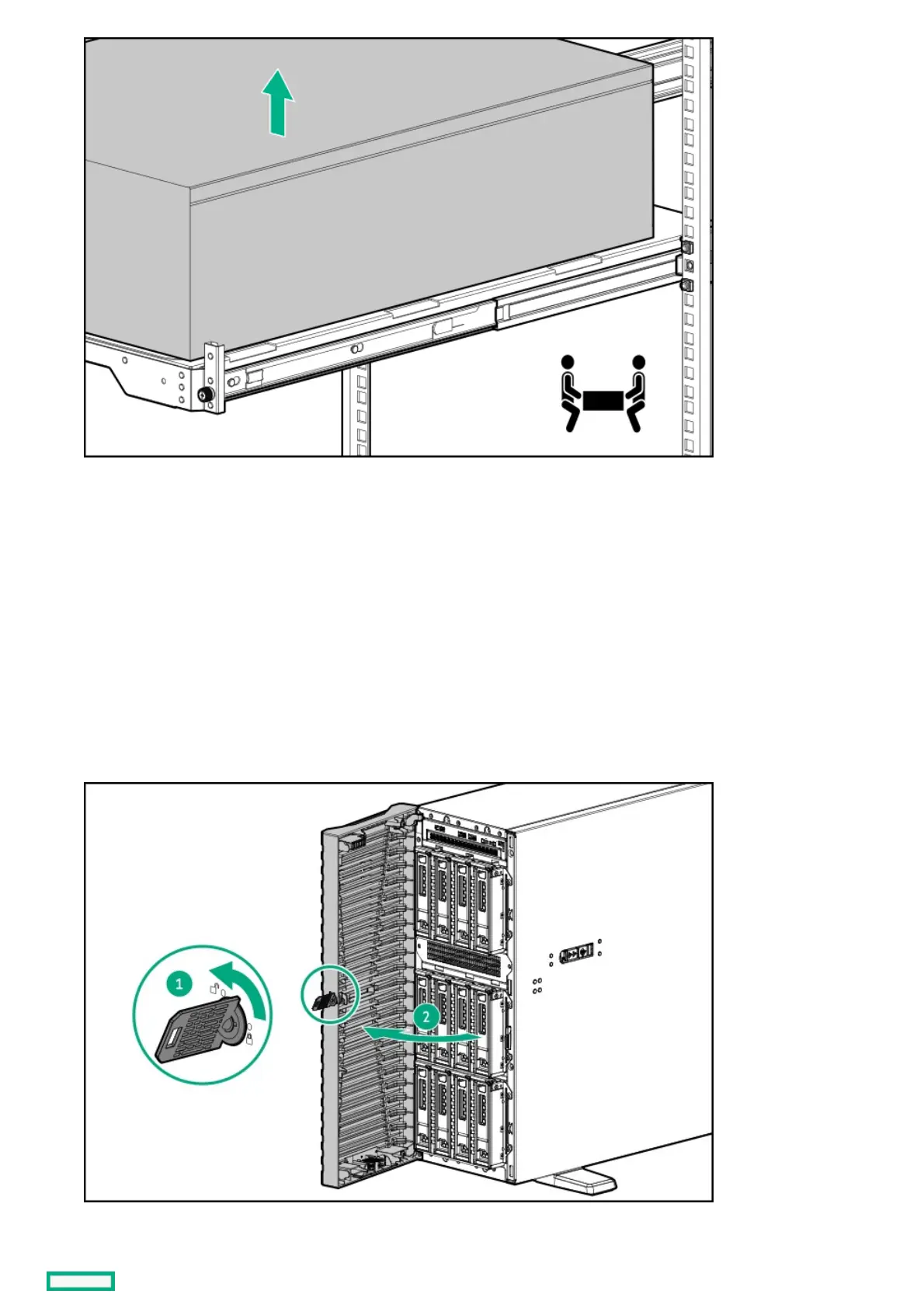

7. Place the server on a flat, level surface with the access panel facing up.
Remove the front bezelRemove the front bezel
About this taskAbout this task
If you are using the virtual power button in iLO to power the server on/off, you do not need to remove the front bezel. Remove the front
bezel only if you need to access the front panel components.
ProcedureProcedure
1. Unlock the front bezel (callout 1).
2. Open the front bezel (callout 2)
3. Release the bezel hooks from the front panel.
