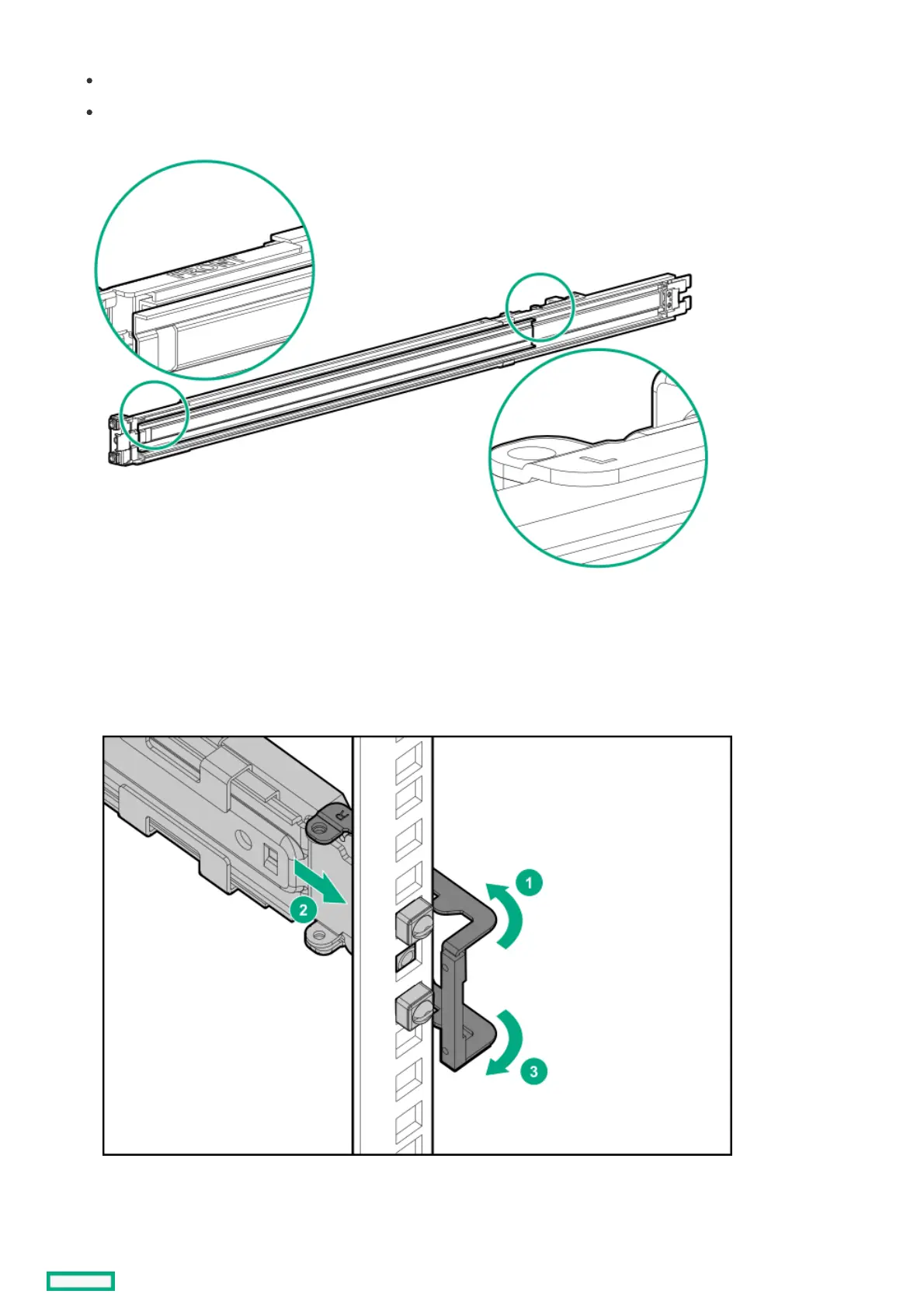

3. Locate the orientation markers on the mounting rails:
The front end of the rails is marked FRONTFRONT.
The rear end of the rails is marked with LL for left and RR for right.
4. Fasten the mounting rails to the rack columns:
a. Retract and hold the rear retention bracket (callout 1).
b. Insert the pins on the mounting flange into the rack column holes (callout 2).
c. Release the rear retention bracket (callout 3).
d. Retract and hold the front retention bracket.
e. Insert the pins on the mounting flange into the rack column holes.
f. Release the front retention bracket.
