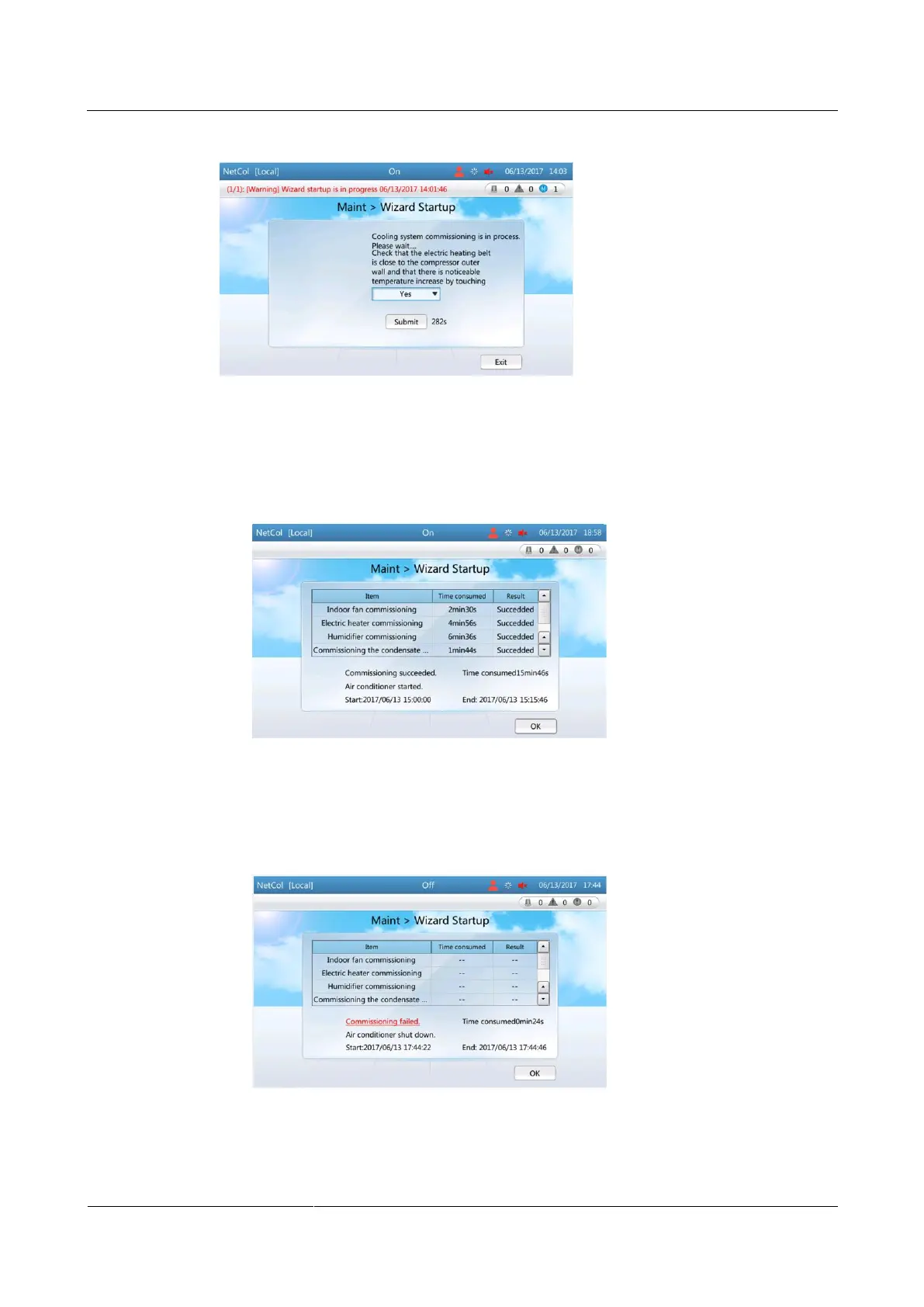

Figure 4-39 Cooling system commissioning
Step 10 View the commissioning result.

Figure 4-40 is displayed if component commissioning succeeds.
Figure 4-40 Commissioning successfully

Figure 4-41 is displayed if component commissioning fails, which ends startup wizard
commissioning.
Figure 4-41 Commissioning unsuccessfully
