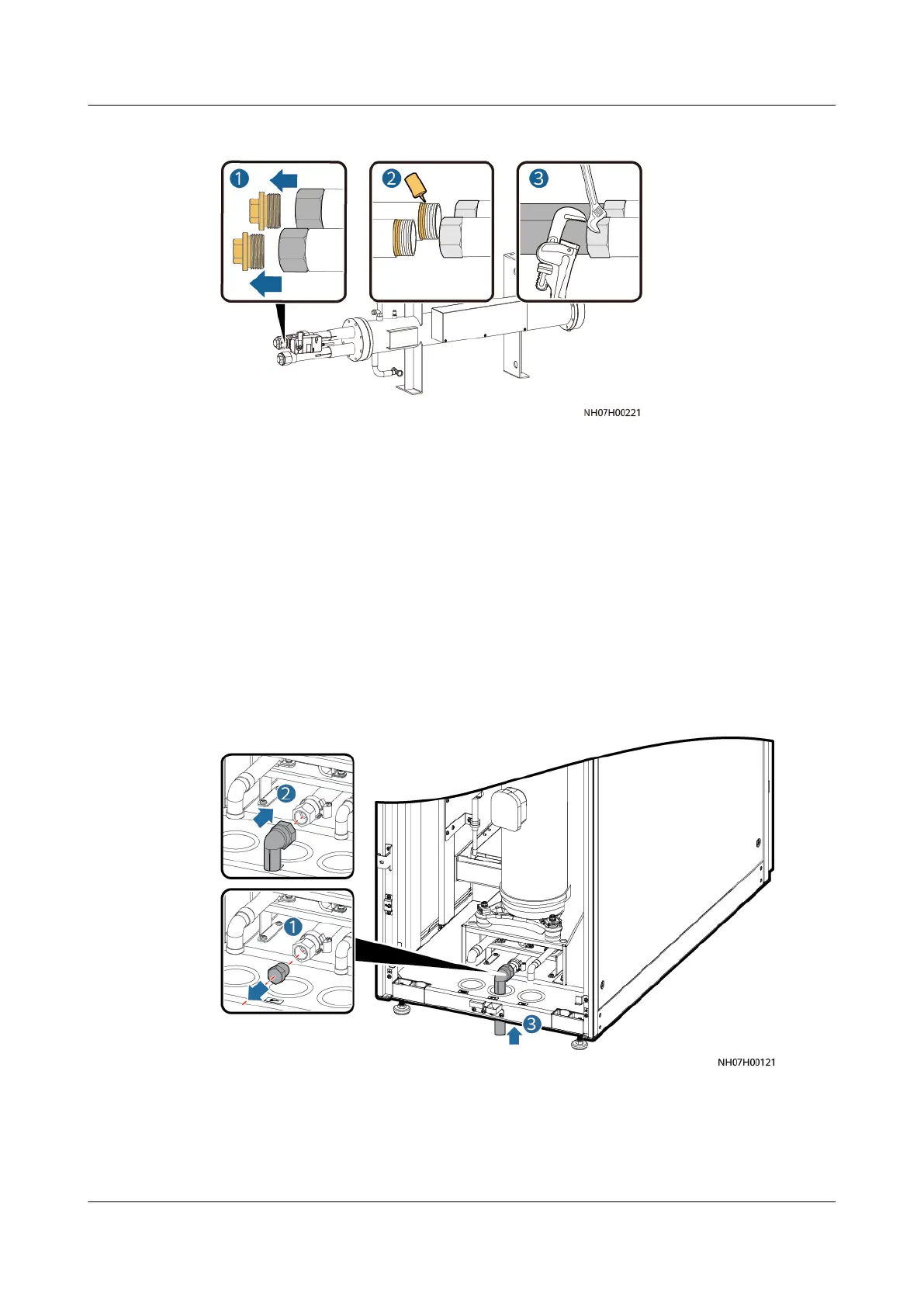

Figure 4-69 Connecting water pipes
----End
4.8.7 Installing the Drainpipe
Context
The following uses a rigid drainpipe as an example to describe how to install a
drainpipe.
Bottom Pipe Routing
Step 1 Remove the drainpipe plug, as shown by (1) in Figure 4-70.
Figure 4-70 Bottom pipe routing
Step 2 Install the water pipe conversion adapter and seal it with sealant, as shown by (2)
in Figure 4-70.
Step 3 Cut a cross in the rubber ring using a utility knife and route the pipe wrapped with
the thermal insulation tube through the hole.
