● Pipes cannot be routed from the bottom on a concrete oor.
Precautions for Connecting Cables
● Connections of all power cables, control cables, and ground cables must
comply with local electrical regulations, and the cable specications should
comply with local cabling specications.
● For details about current in full load, see the device nameplate.
● Only
qualied electrical installation personnel are allowed to connect cables.
Before connecting cables, wear insulation and protective equipment, such as
protective gloves.
● All smart cooling products must be reliably grounded.
● Cables cannot be routed from the bottom on a concrete oor.
4.1.3 Outdoor Unit Installation Requirements
Precautions
● Ensure that the air intake section and air exhaust section of the condenser are
unblocked. Install the outdoor unit in clean areas that are away from
residential areas.
● Wrap thermal insulation layers for pipes connecting the indoor unit and
outdoor unit.
● Do not hold the copper pipe or electric control box to transport the outdoor
unit, and keep the
ns intact.
● Route in pipes from the top and out from the bottom when connecting
condenser pipes.
● The horizontal or vertical error should not be more than ±5° when the
outdoor unit is installed horizontally or vertically. When the outdoor unit is
vertically installed, the electric control box and its waterproof connector
cannot face upward. The following
gure shows the installation method
mode.

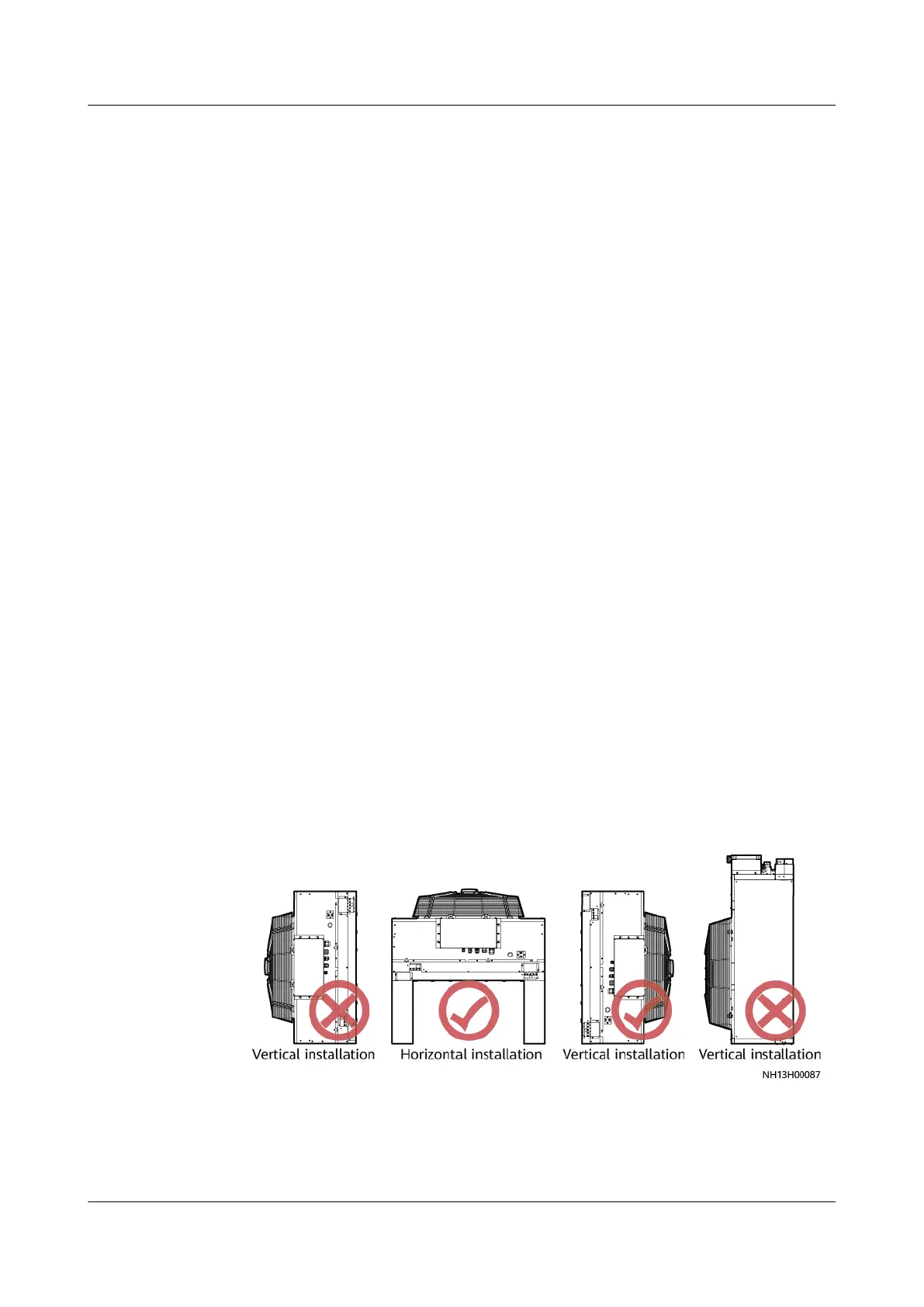

Figure 4-4 Installation modes (for NetCol500-A060)
Special Environmental Requirements
● Monsoon: If you install the outdoor unit vertically, ensure that the air
produced by fans ows in and out in the same direction as the monsoon.
