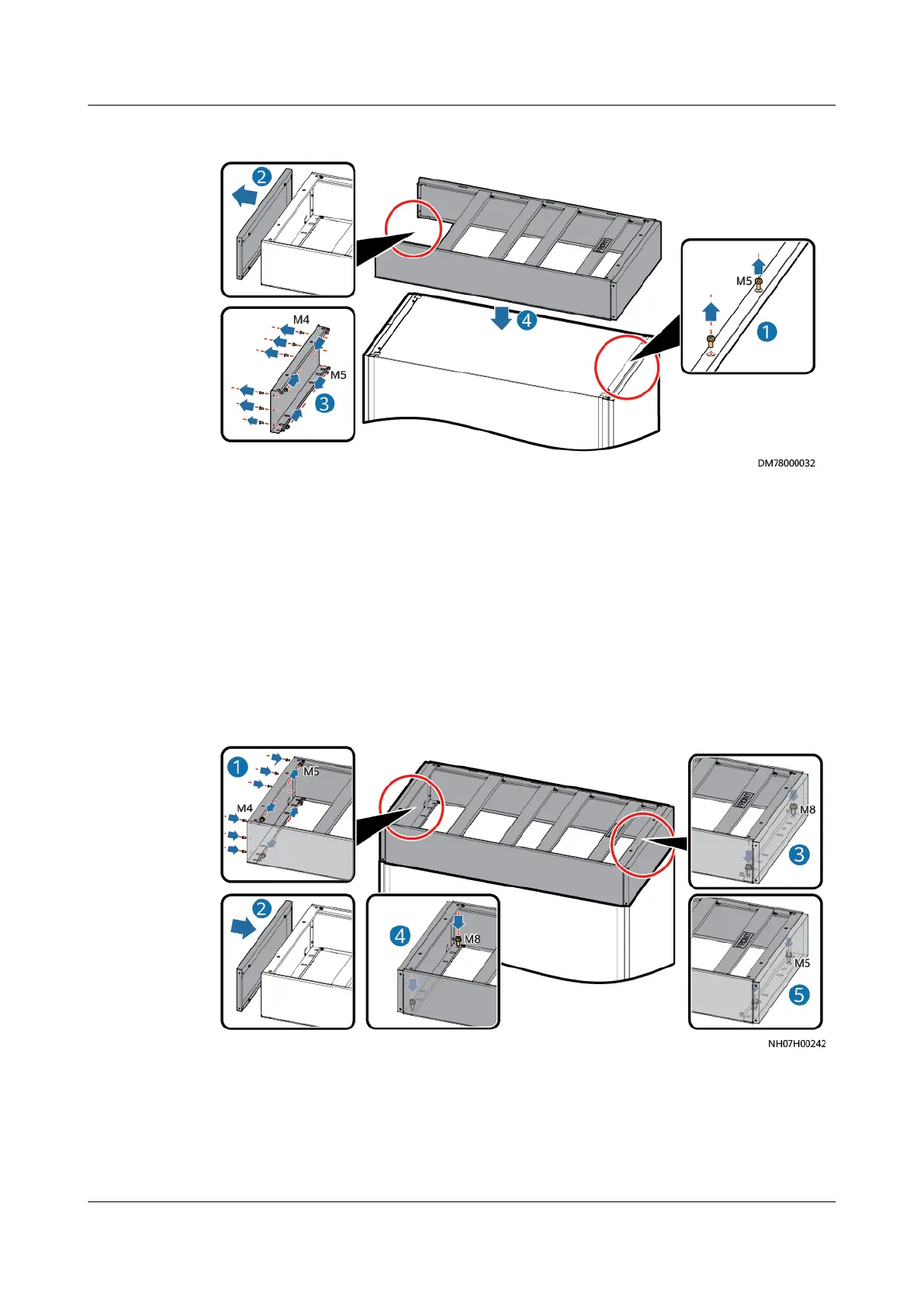

Figure 4-36 Placing a top frame
Step 4 Secure the top frame.
1. Use the four M5x10 tapping screws and the six M4x10 countersunk screws to
secure the rear plate to the top frame, and clamp the rear plate, as shown by
(1) and (2) in Figure 4-37.
2. Use the four M8x20 screw assemblies to secure the top frame to the cabinet,
as shown by (3) and (4) in Figure 4-37.
3. Install two M5x10 tapping screws at the front of the top frame to set up
equipotential bonding between the cabinet and the top frame, as shown by
(5) in Figure 4-37.
Figure 4-37 Securing the top frame
----End
4.5 Installing the Outdoor Unit
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 4 Installation
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 67
