C.1 Electric Control Box Layout for the Indoor Unit

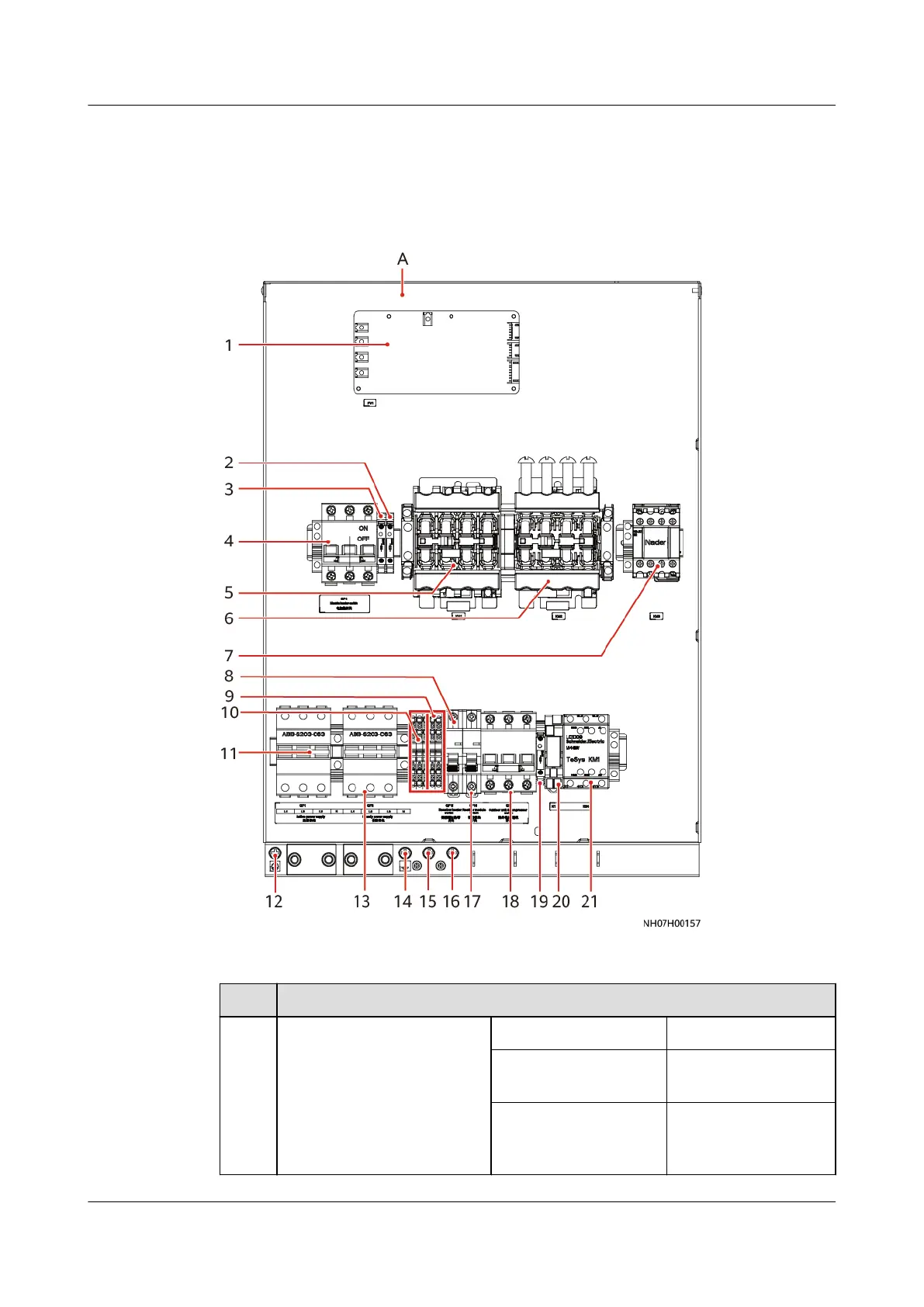

Figure C-1 Electric box layout
Table C-1 Ports of the electric box
No.
Name and Function
A Side view of the electric
box
(1) SPD (2) FU1
(3) FU2 (4) Electric heater
switch QF4
(5) Active power
switchover contactor
KM1
(6) Standby power
switchover
contactor KM2
