4.5.3 Securing an Outdoor Unit
4.5.3.1 Horizontal Installation Scenario
Context
When installing the outdoor unit, fully tighten the six stainless steel bolts for each
support leg and the two stainless steel fastening bolts that secure each support
leg to the ground.
Procedure
Step 1 Remove the four bracket angles from the side panels of the outdoor unit by
removing the two M6x16 stainless bolts from each bracket angle, as shown in
Figure 4-40.

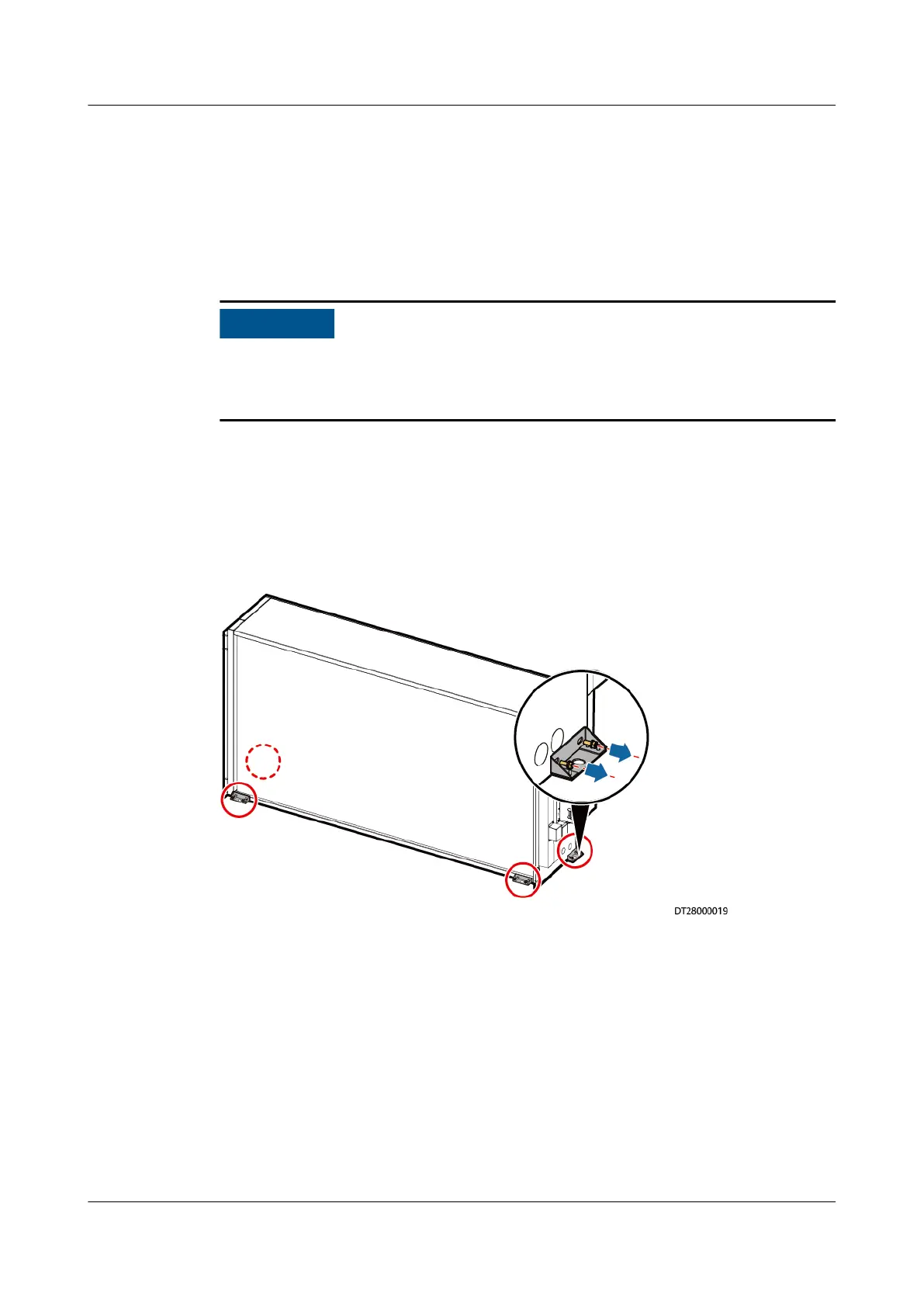

Figure 4-40 Removing the bolts from the bracket angles
Step 2 Install four legs on the four corners of the condenser by using twenty-four
stainless M6x16 bolts (four stainless bolts for installing one leg), as shown in
Figure 4-41.
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 4 Installation
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 70
