2.2.1 Indoor Unit
Appearance

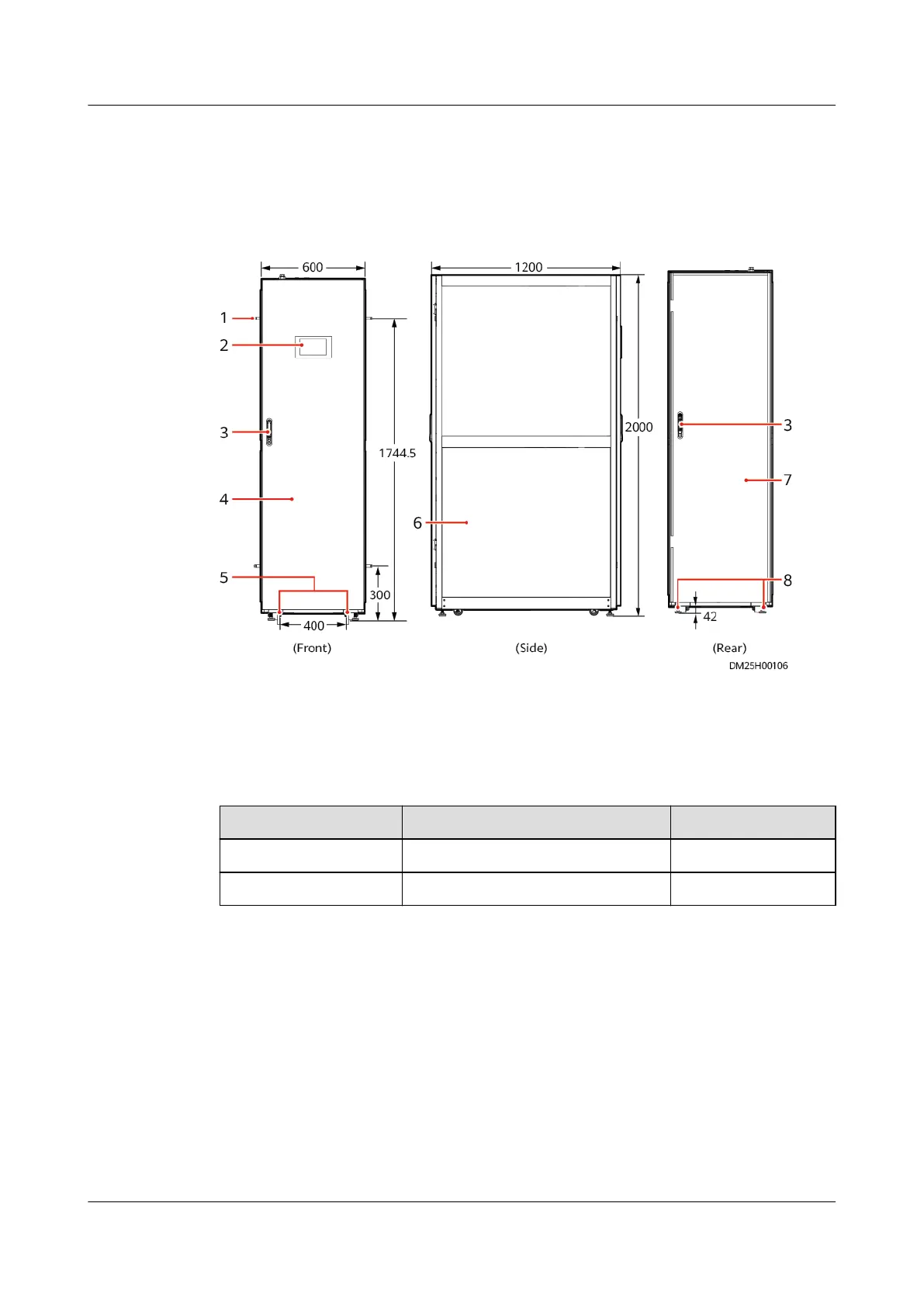

Figure 2-3 Dimensions (unit: mm)
(1) Cabinet connecting
kit
(2) Controller panel (3) Door lock (4) Front door
(5) Mounting hole (6) Side panel (7) Rear door (8) Anchor
Table 2-3 Dimensions
Cabinet Dimensions
H x W x D (mm) Expansion Method
Standard dimensions 2000 x 600 x 1200 -
Expanded dimensions 2200 x 600 x 1200 Install a top frame.
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 2 Product Description
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 15
