Huawei NetCol5000-A050 User Manual

(4) Pagoda connector: G 1/2
inch; connected to a pagoda
connector with outer screw
threads
(5) Hose clamp (6) Hose: made of EPDM or
other materials
(7) External thread connector:
G 3/4 inch, reserved for the
smart cooling product
humidier
(8) Active connector: G 3/4
inch, inner thread PP-R
(9) Rigid pipe: made of PP-R or
other materials
(10) Elbow: made of PP-R or
other materials
(11) Rigid pipe: made of PP-R
or other materials
NO TE
The hose clamp (part 5) is congured by default. Other components need to be purchased.
4.2.2.5 Drainpipe
The drainpipe can be connected using a hose or a rigid pipe.

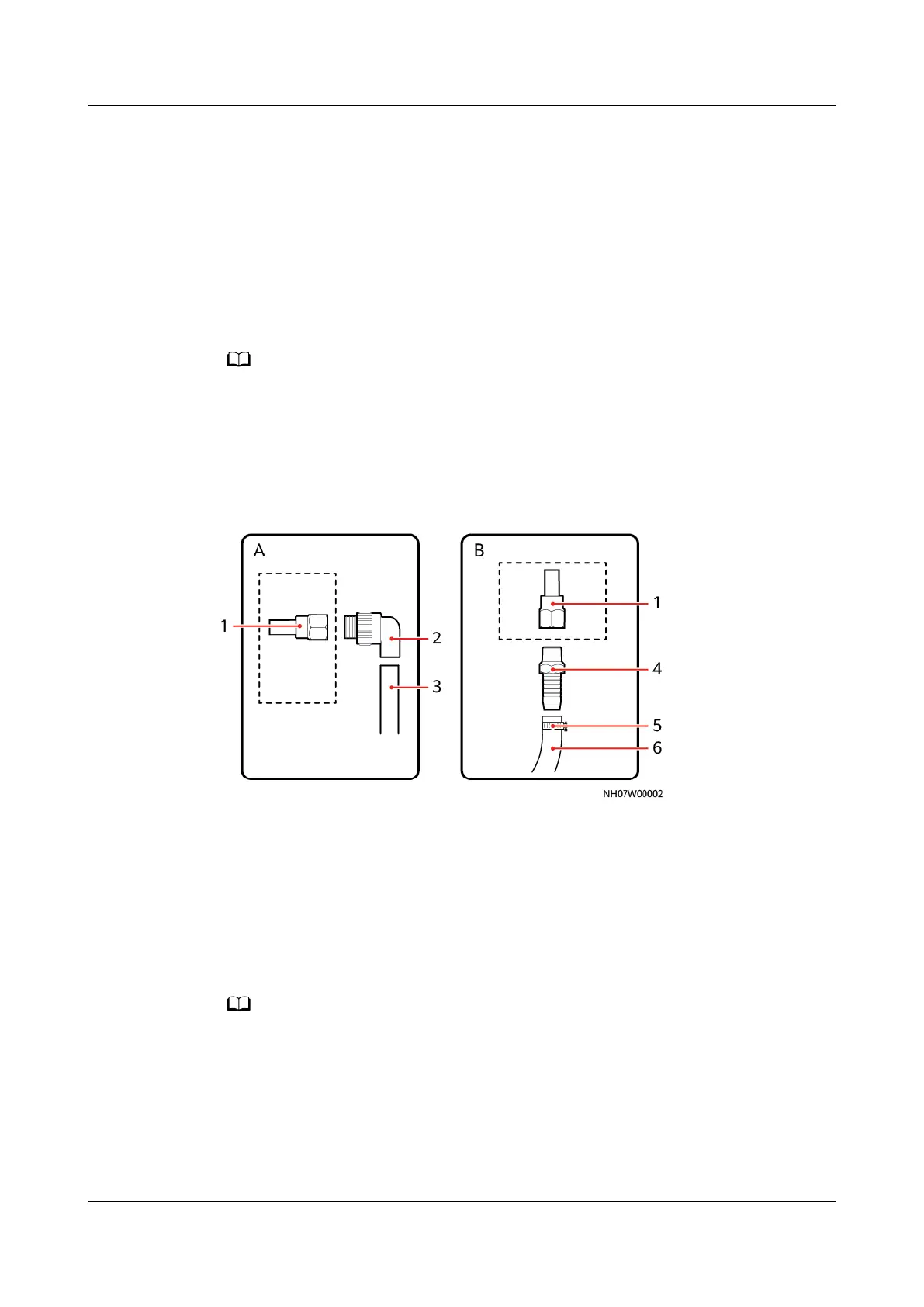

Figure 4-24 Connecting a drainpipe
(1) Internal thread connector: BSPP 1/2 inch,
internal thread connector delivered with the
smart cooling product
(2) Conversion adapter: BSPT 1/2 inch;
connected to a rigid pipe with external threads
(3) Rigid pipe: made of PP-R, C-PVC, or other
materials
(4) Pagoda connector
(5) Hose clamp (6) Hose: inner diameter of 3/4 inch; made of
EPDM or other materials
NO TE
The part in the dotted line box is the internal thread connector delivered with the smart
cooling product. The hose clamp (part 5) is congured by default. Other components need
to be purchased.
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 4 Installation
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 56
