Huawei NetCol5000-A050 - Installing the Humidifier Water Inlet Pipe (Without a Humidifier Hose)

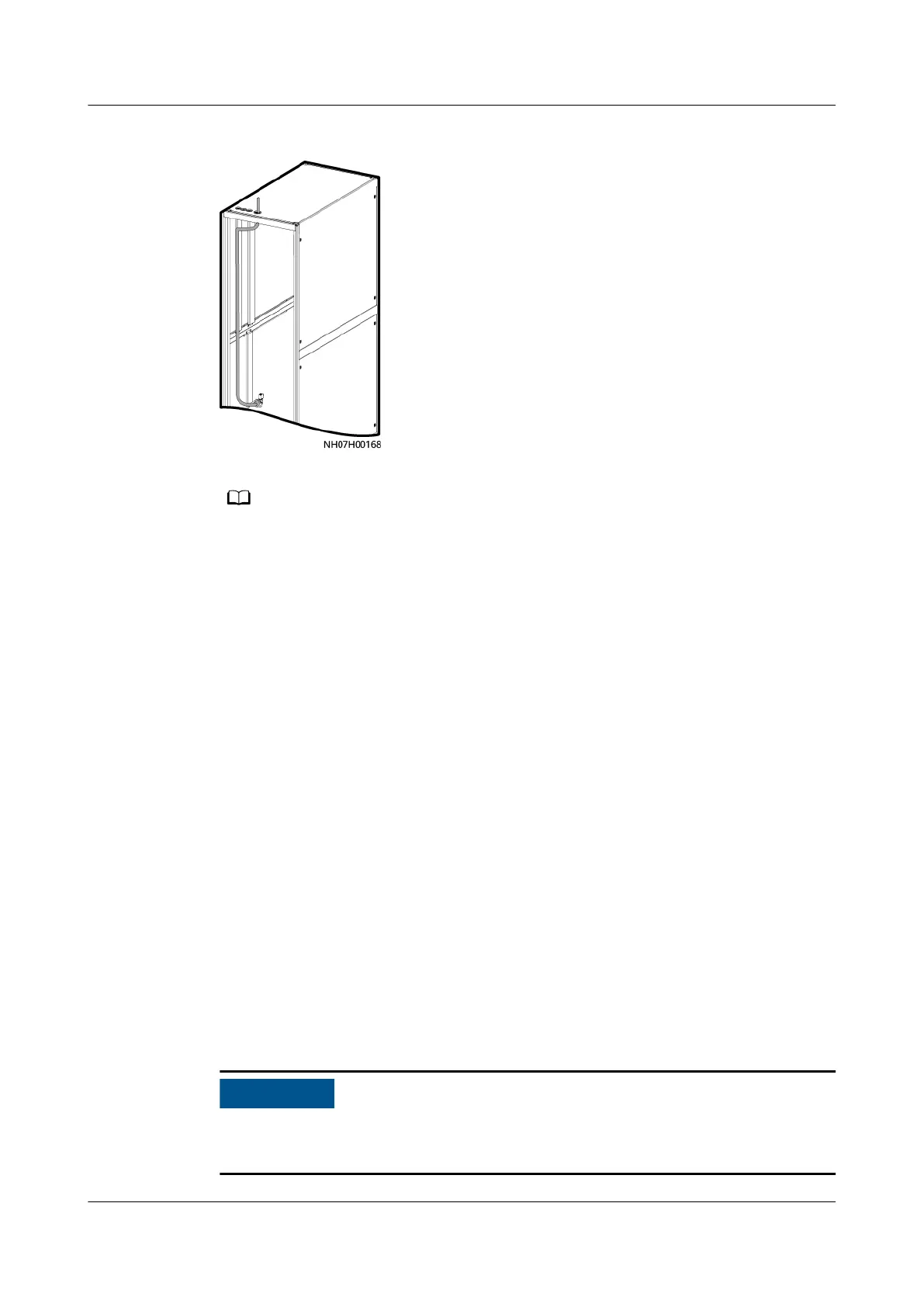

Figure 4-73 Top routing of the water inlet pipe
NO TE
● The other end is a reserved G 1/2 inch connector with inner screw threads. Connect the
other end to a hose or rigid pipe based on site requirements.
● Secure the water inlet pipe inside the cabinet to the left post of the cabinet using cable
ties.
Step 2 Clean the engineering pipes before connecting the water inlet pipe to the engineer
pipe to avoid impurities entering into the
humidier.
Step 3 Connect the water inlet pipe to the engineering pipe and wrap the pipe with
thermal insulation foam.
----End
4.8.8.2 Installing the Humidier Water Inlet Pipe (Without a Humidier
Hose)
Procedure
Step 1 Melt the active connector with rigid pipe 1 and the elbow to form a water supply
pipe assembly, as shown by (1) and (2) in the following gure.
Step 2 Connect the water supply pipe assembly to the water inlet solenoid valve, as
shown by (3) in the following gure.
Step 3 Melt rigid pipe 2 and the water supply pipe assembly, as shown by (4) in the
following gure.
NO TICE
The other end is a reserved φ25 mm connector. Connect the other end to a hose
or rigid pipe based on site requirements.
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 4 Installation
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 97
