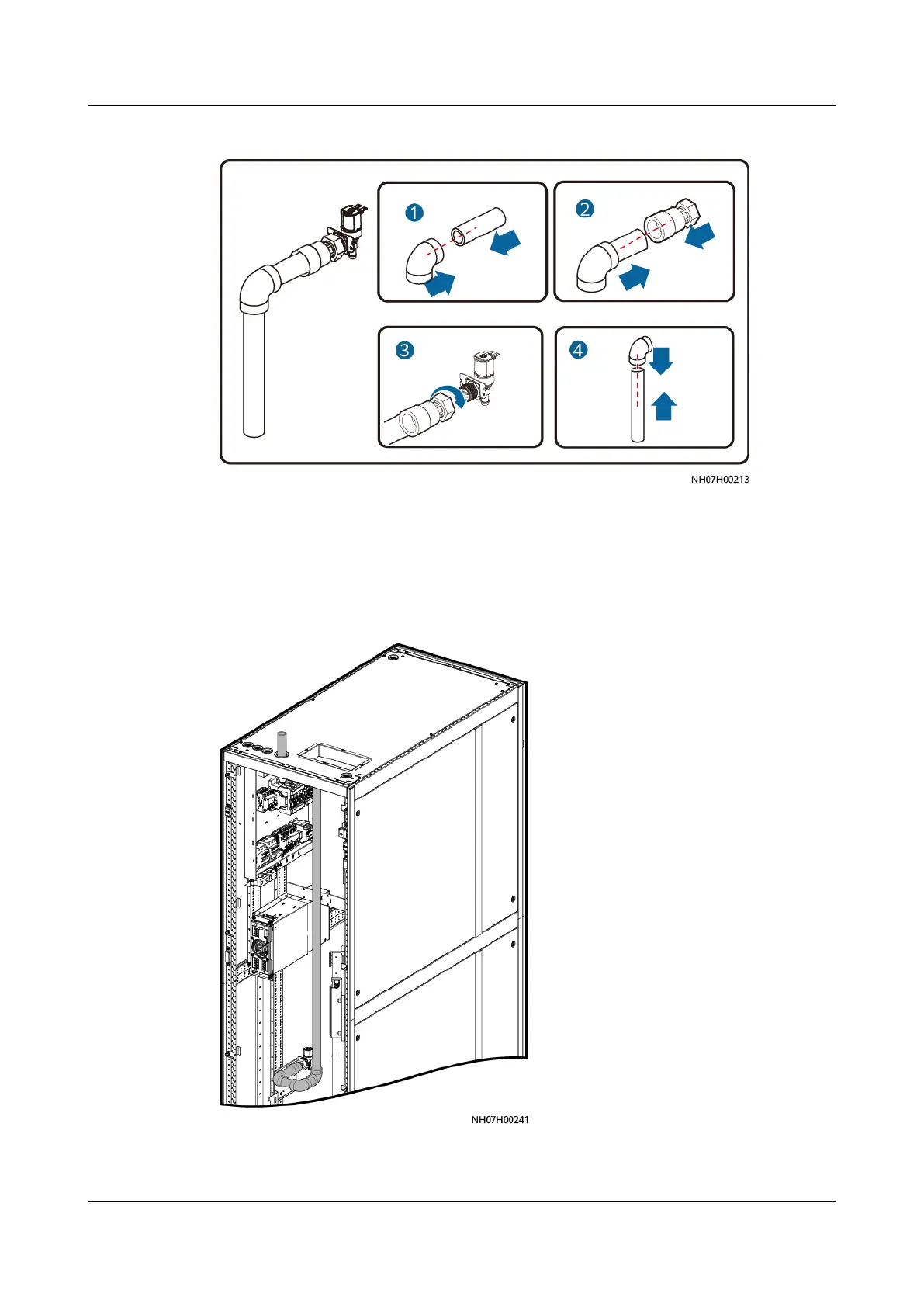

Figure 4-74 Connecting a humidier water inlet pipe
Step 4 Clean the engineering pipes before connecting the water inlet pipe to the engineer
pipe to avoid impurities entering into the
humidier.
Step 5 Connect the water inlet pipe to the engineering pipe and wrap the pipe with
thermal insulation foam.
Figure 4-75 Top routing of the water inlet pipe
