C.2 NetCol500-A060 Electric Control Box Layout

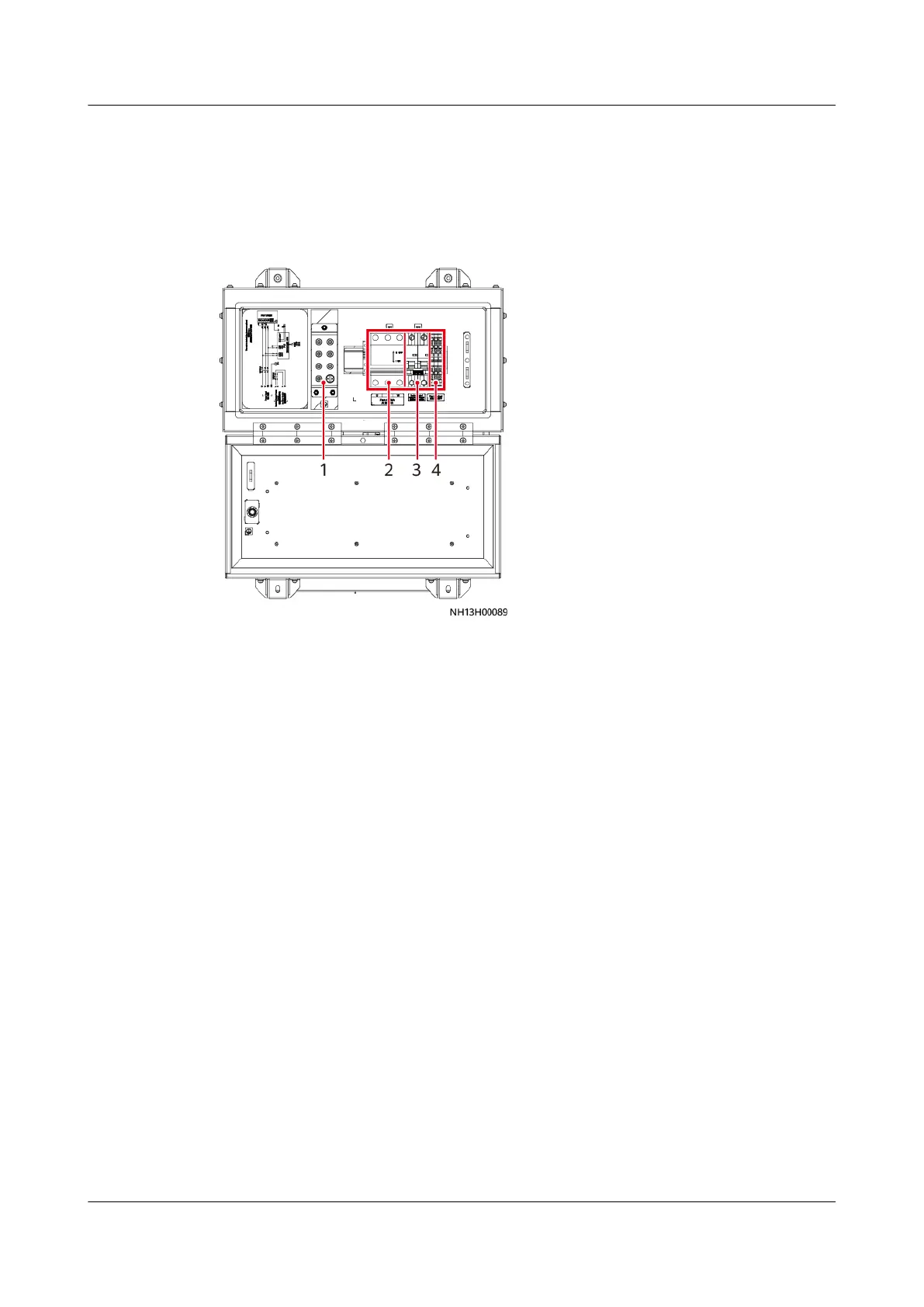

Figure C-3 NetCol500-A060 electric control box (without a temperature control
intelligent monitoring board)
(1) PE bar (2) Fan switch (QF1)
(3) Power switch for receiver heater (QF2) (4) Fan terminal
