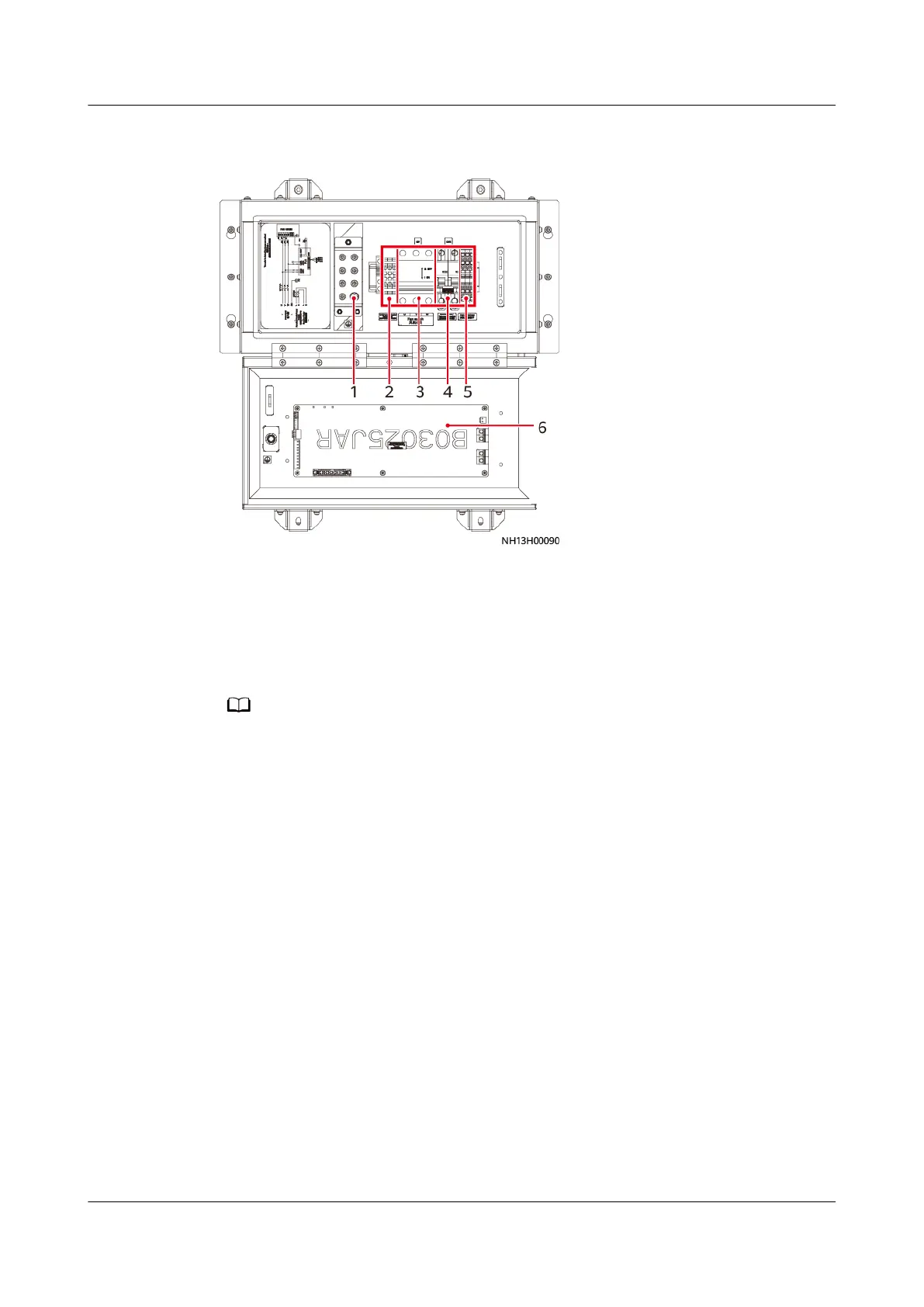

Figure C-4 NetCol500-A060 electric control box (with a temperature control
intelligent monitoring board)
(1) PE bar (2) RS485 communication line
terminal (RS485+, RS485–,
GND)
(3) Fan switch (QF1)
(4) Receiver heater/Water
cooling module (QF2)
(5) Fan terminal (6) Temperature control
intelligent monitoring board
NO TE
The temperature control intelligent monitoring board is located on the inner cover of the
electric control box.
