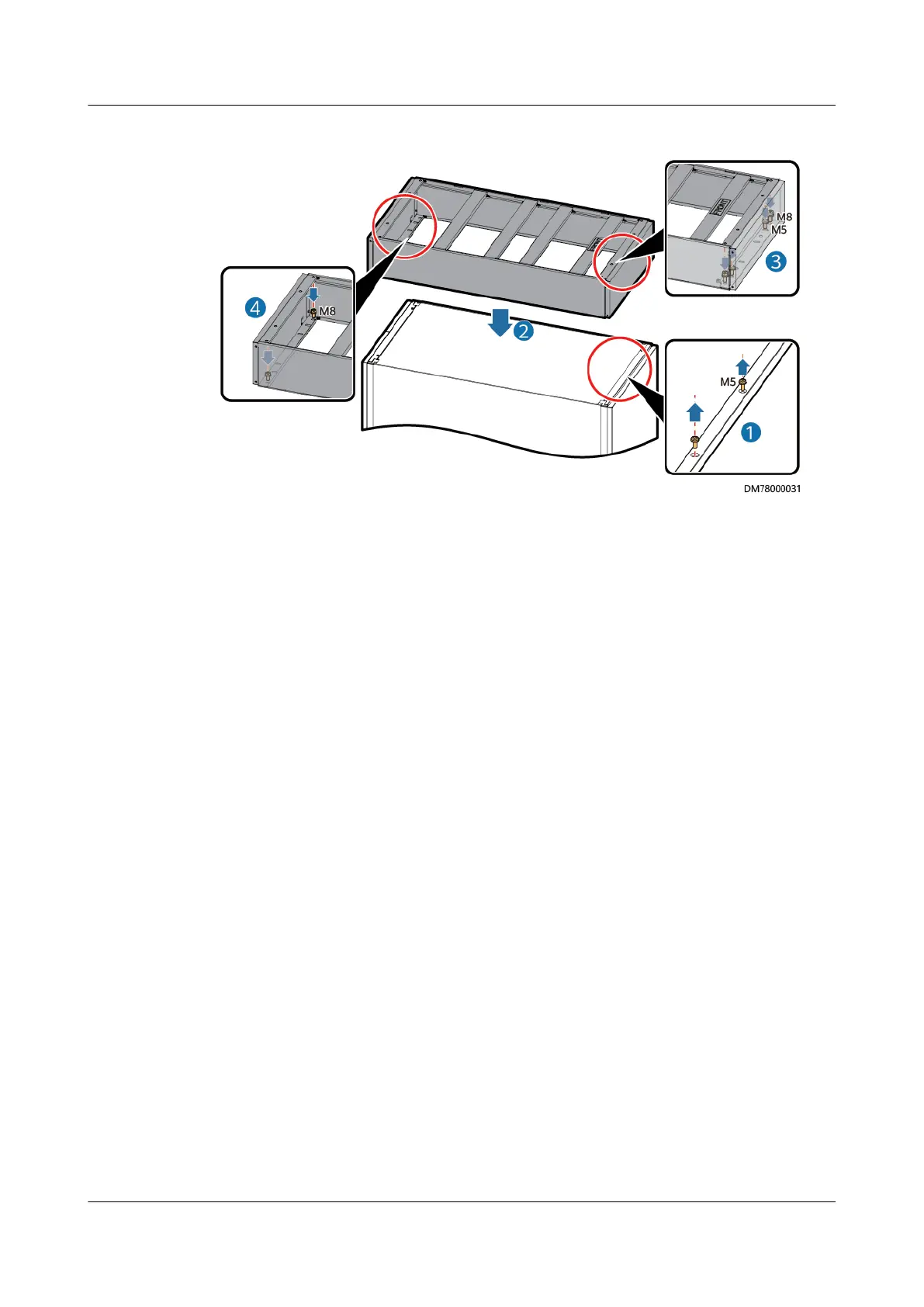

Figure 4-35 Installing a top frame
Step 2 Place the top frame, with the side with FRONT facing upwards and the end with
FRONT facing the cabinet front door, as shown by (2) in Figure 4-35.
Step 3 Secure the top frame.
1. Use the four M8x20 screw assemblies to secure the top frame to the cabinet,
as shown by (3) and (4) in Figure 4-35.
2. Install two M5x10 tapping screws at the front of the top frame to set up
equipotential bonding between the cabinet and the top frame, as shown by
(3) in Figure 4-35.
----End
Overhead Pipe Routing
Step 1 Remove the two M5x10 tapping screws that secure the front door sealing plate on
the top of the cabinet, as shown by (1) in Figure 4-36.
Step 2 Remove the rear decorative plate for the top frame, and then remove the four
M5x10 tapping screws and the six M4x10 countersunk screws from the rear plate
of the top frame, as shown by (2) and (3) in Figure 4-36.
Step 3 Place the top frame, with the side with FRONT facing upwards and the end with
FRONT facing the cabinet front door, as shown by (4) in Figure 4-36.
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 4 Installation
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 66
