Step 4 Charge refrigerant on the basis of the precharging.
● If there is no low temperature component, open the low-pressure valve of the
pressure gauge, and charge the remaining refrigerant from the low-pressure
needle valve in small ow or intermittently.

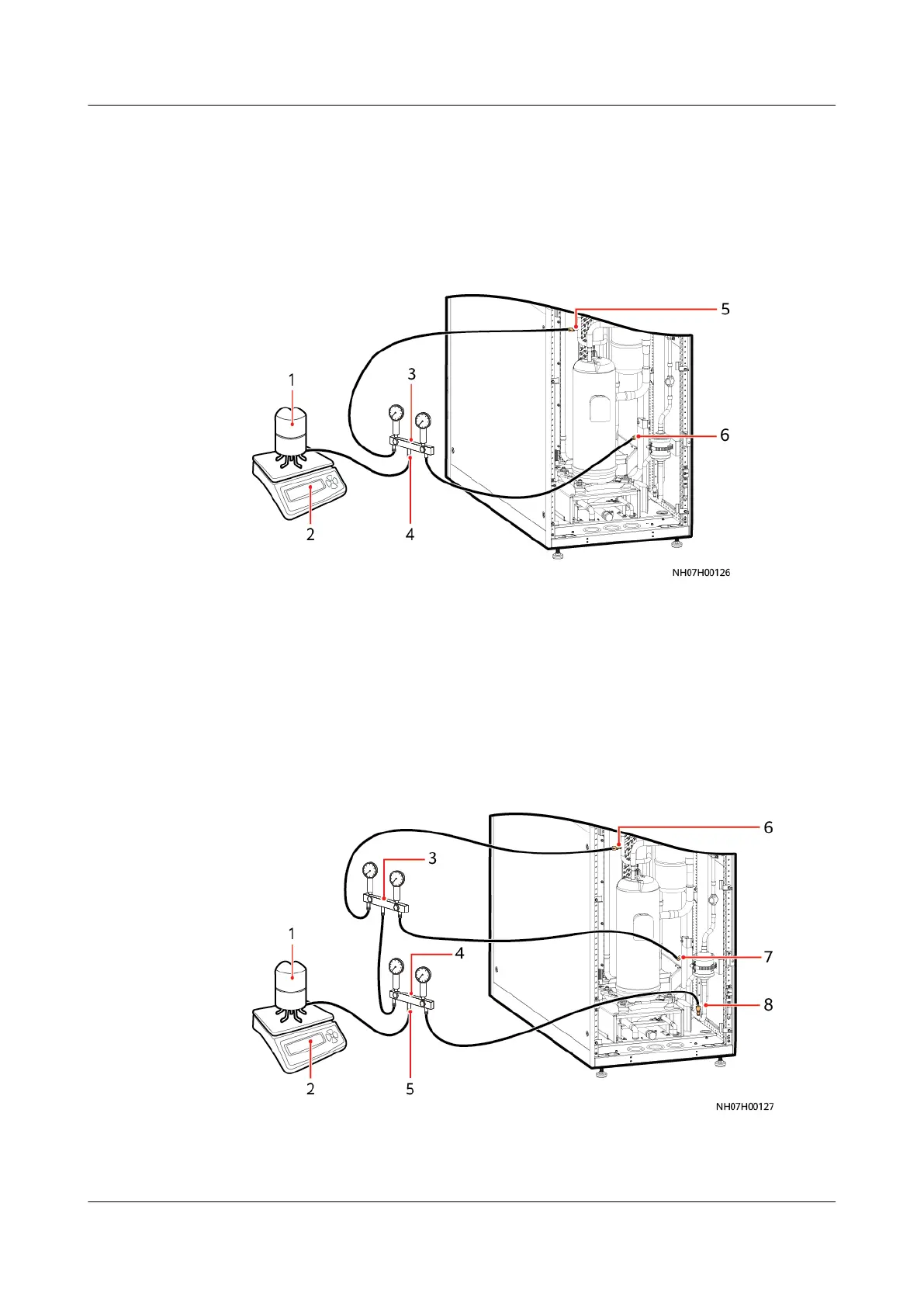

Figure 6-34 Precharging refrigerant when no low temperature component is
congured
(1) Refrigerant cylinder (2) Electronic scale (3) Pressure gauge
(4) Connection nut (5) Low-pressure needle
valve
(6) Exhaust pipe needle valve
● If there is a low temperature component, open the low-pressure valves of
pressure gauge 1 and pressure gauge 2, and charge the remaining refrigerant
from the low-pressure needle valves in small ow or intermittently.
Figure 6-35 Precharging refrigerant when a low temperature component is
congured
(1) Refrigerant
cylinder
(2) Electronic scale (3) Pressure gauge 1 (4) Pressure gauge 2
