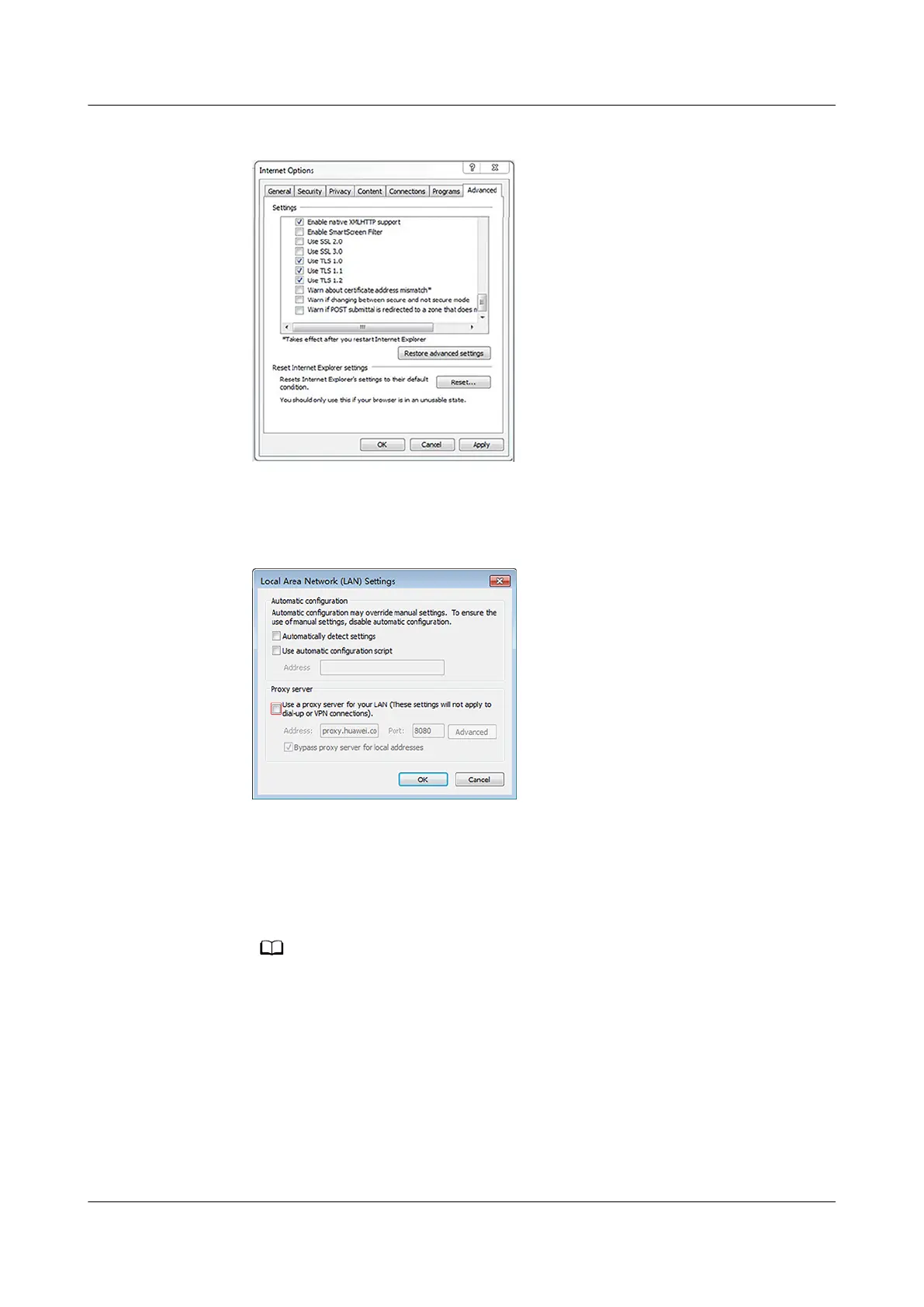

Figure 7-1 Setting internet options
3. (Optional) Click the Connections tab and select LAN settings.
4. (Optional) Under Proxy server, clear Use a proxy server for your LAN.
Figure 7-2 Setting the proxy server
5. Click OK.
Step 5 Log in to the WebUI of the smart cooling product.
1. Enter https://IP address (such as IP address https://192.168.0.10) in the
address box of the browser, and then press Enter to enter the WebUI login
page.
If the security certicate is not installed, an alarm will be displayed as Figure 7-3, and tap
Continue to this website (not recommended).
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 7 WebUI Introduction
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 169
To Next Page
