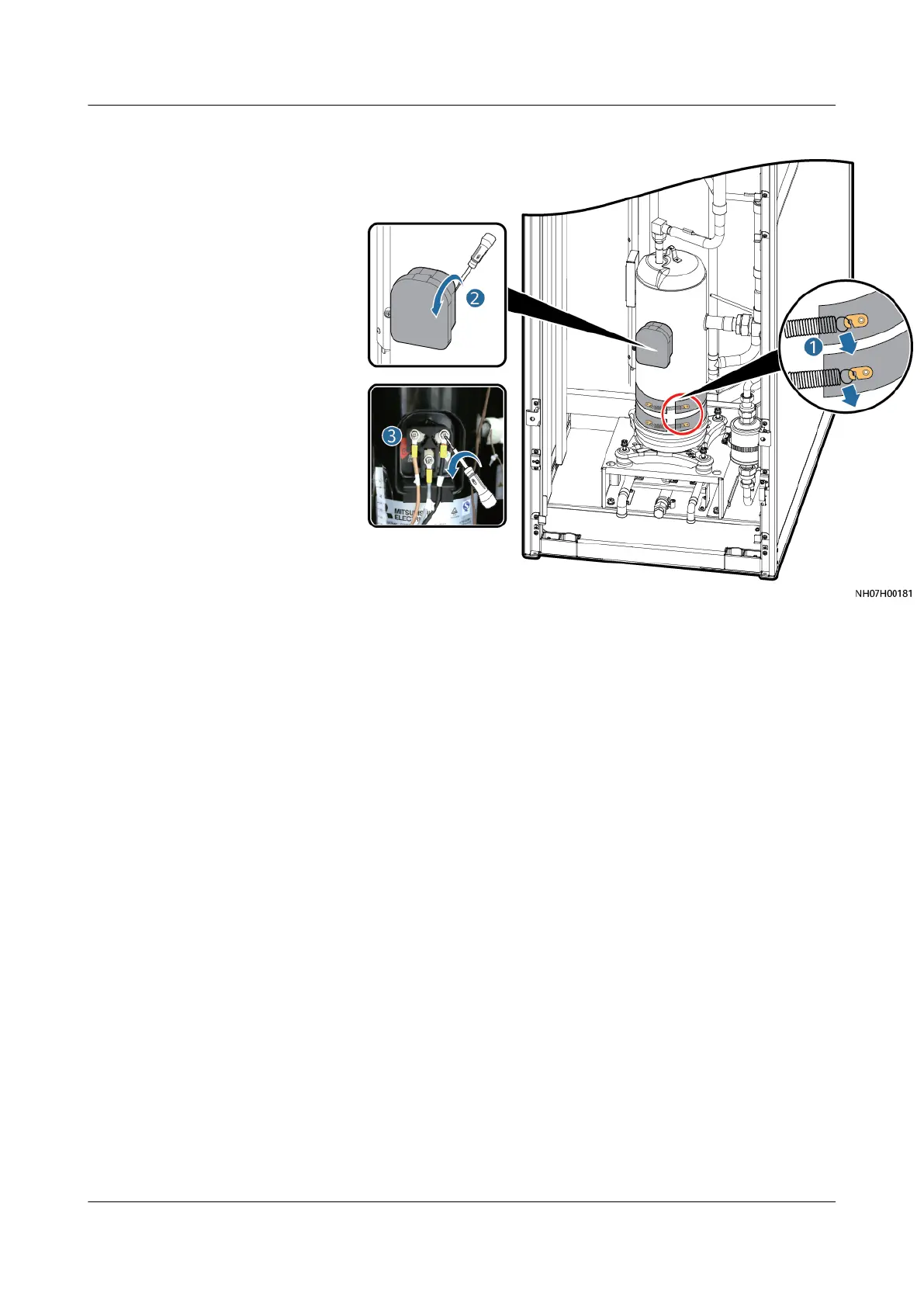

Figure 11-13 Removing the electric heating belt and compressor power cables
Step 7 Remove the compressor.
1. Heat the suction angle valve thread connection position using a heat gun for
10 minutes. Secure the angle nut and pipe nut on the suction side, as shown
by (1) in Figure 11-14, using two 30# adjustable wrenches respectively. Then
loosen the adjustable nut using a 36# adjustable wrench to separate the pipe
from the angle valve. After removing the valve, seal the suction vent
immediately.
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 11 Parts Replacement
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 259
