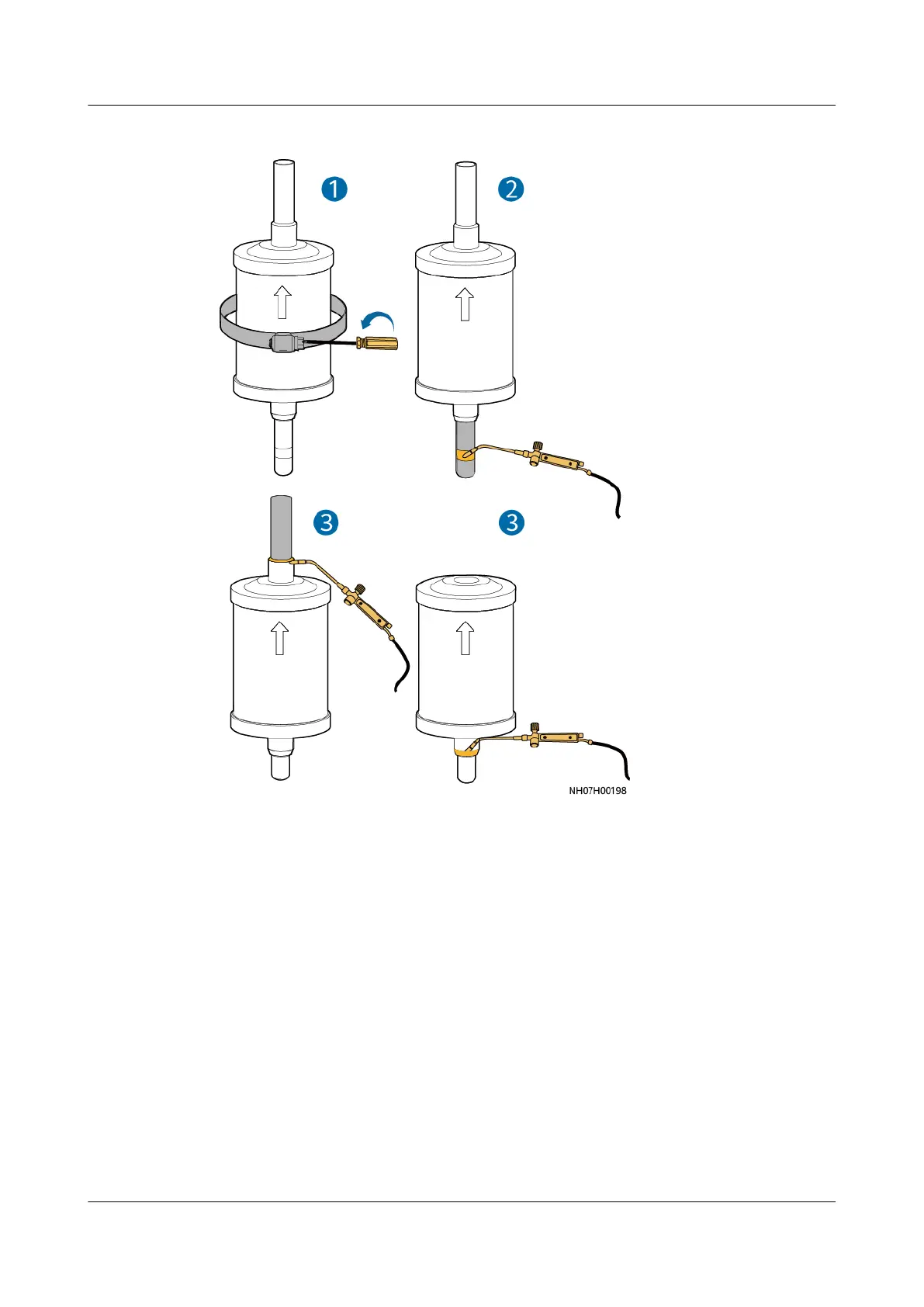

Figure 11-29 Removing the lter dryer
1. Remove the hold hoop from the lter dryer using a Phillips screwdriver, as
shown by (3) in Figure 11-28.
2. Weld to remove the entrance below the
lter dryer, as shown by (4) welding
point B in Figure 11-28.
3. Weld to remove the assembly of the
lter dryer from the above of the lter
dryer, as shown by (1) welding point A in Figure 11-28 , and remove the lter
dryer.
4. Weld o the lower part of the removed lter dryer assembly.
Step 4 Install a new
lter dryer, as shown in Figure 11-30.
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 11 Parts Replacement
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 274
