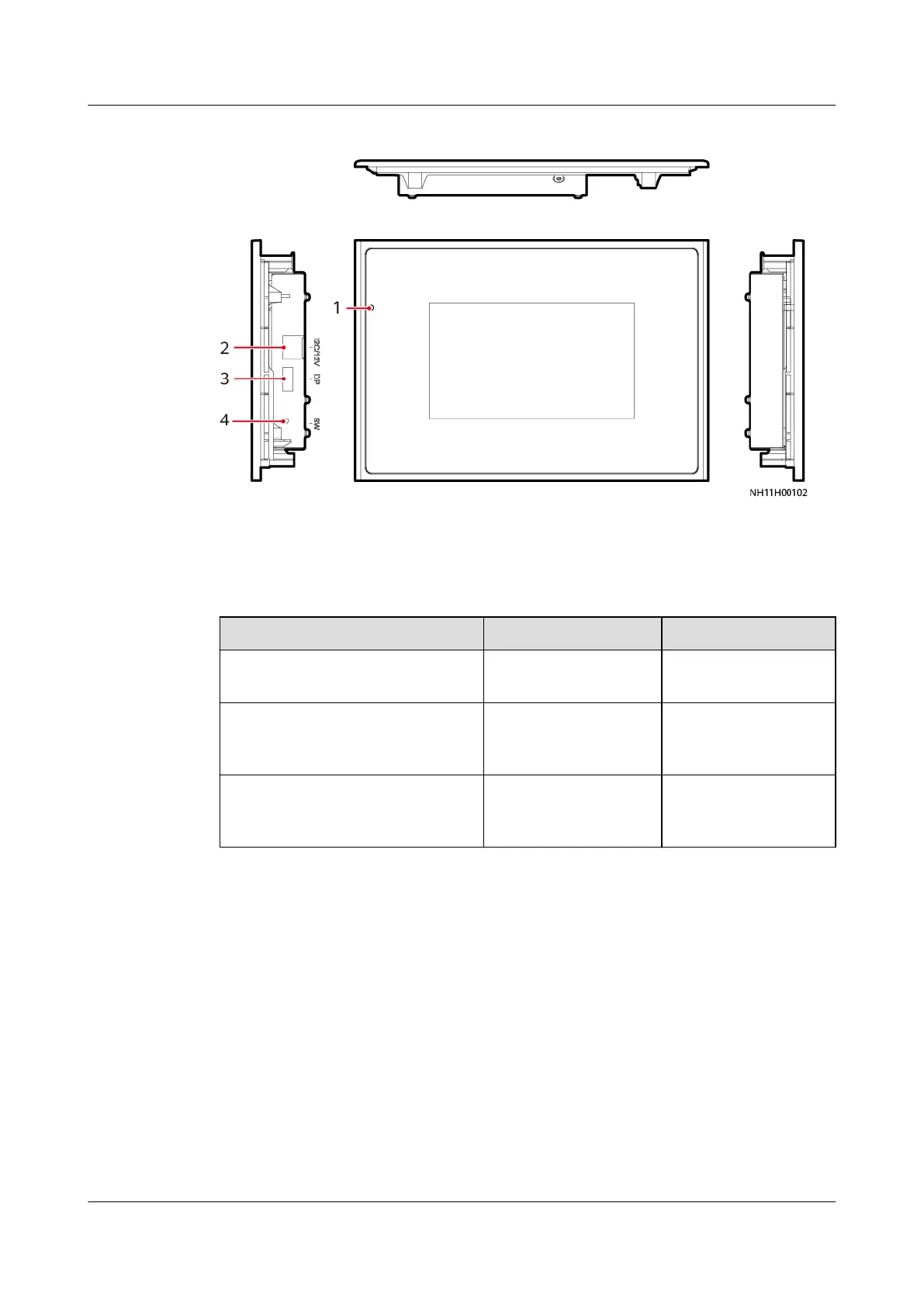

Figure 2-6 LCD
(1) Indicator (2) I2C/12V (reserved)
(3) DP (display port) (4) SW (reserved)
Table 2-4 Indicator and buzzer status description
Alarm Status
Indicators Buzzer
The device is operating properly,
or a warning alarm occurs.
Green Silent
The buzzer keeps buzzing if a
major alarm is not conrmed
after the alarm generation.
Yellow Beeping
intermittently
The buzzer keeps buzzing if a
critical alarm is not conrmed
after the alarm generation.
Red Beeping
continuously
Functions
● Single unit control: When only one smart cooling product is running, the
display panel provides logic control of components in the smart cooling
product to adjust the indoor temperature and humidity.
● Display and operations: The 7-inch display panel with the true-color
touchscreen allows you to set parameters for the smart cooling product and
query its status.
● Four remote functions:
– Telemetry: supply air temperature, return air temperature, supply air
humidity, return air humidity, and working status of the smart cooling
product
– Teleadjust: temperature and humidity setpoints
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 2 Product Description
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 20
