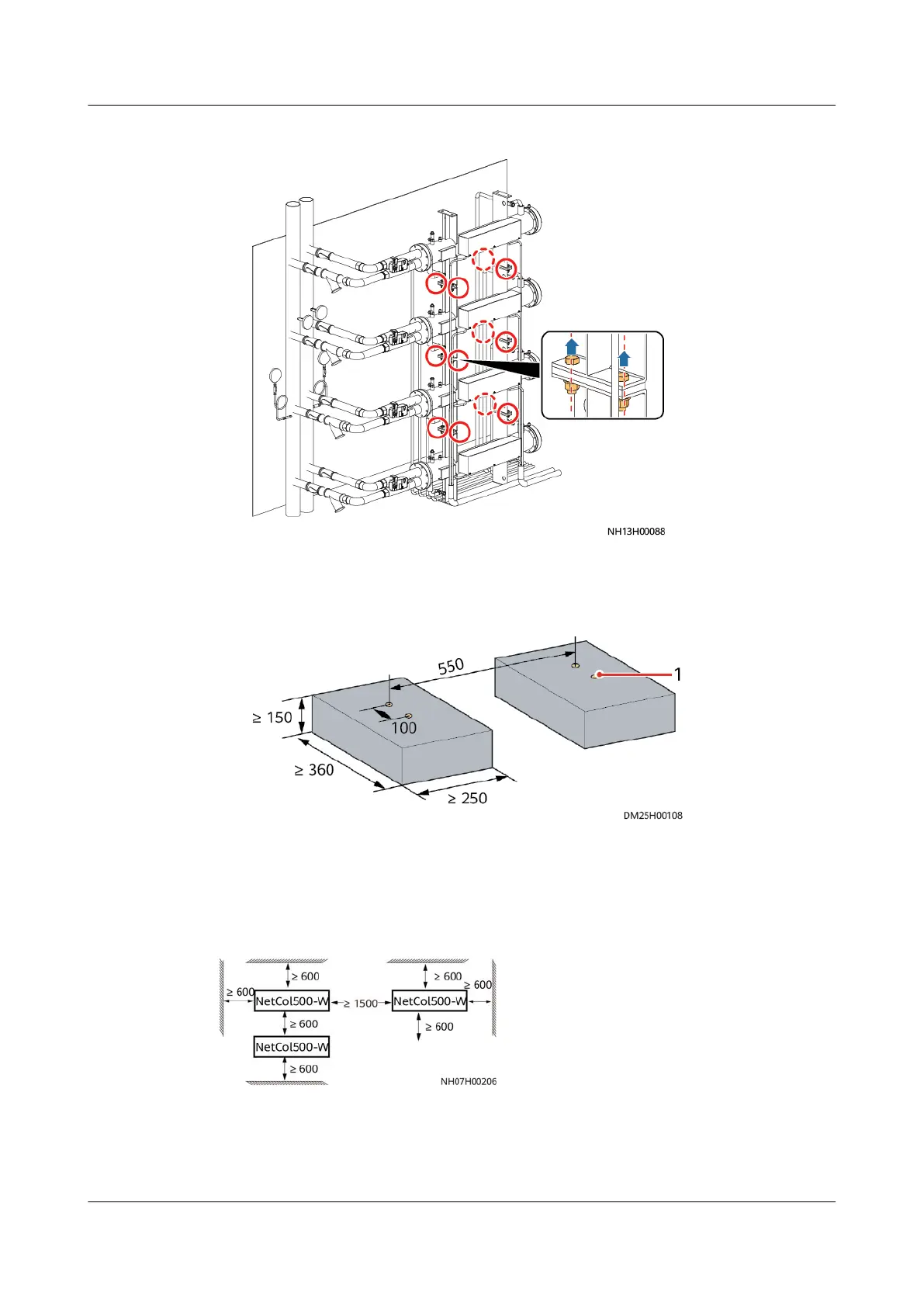

Figure 4-18 Stacking scenario
● The water cooling module should be installed on a concrete base. The base
requirements are as follows.
Figure 4-19 Concrete base dimensions (unit: mm)
(1) Mounting hole: 4 x M12
● The following gure shows the operation area requirements for water cooling
modules.
Figure 4-20 Operation area requirements for water cooling modules (unit: mm)
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 4 Installation
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 47
