Huawei NetEngine 8000 F User Manual

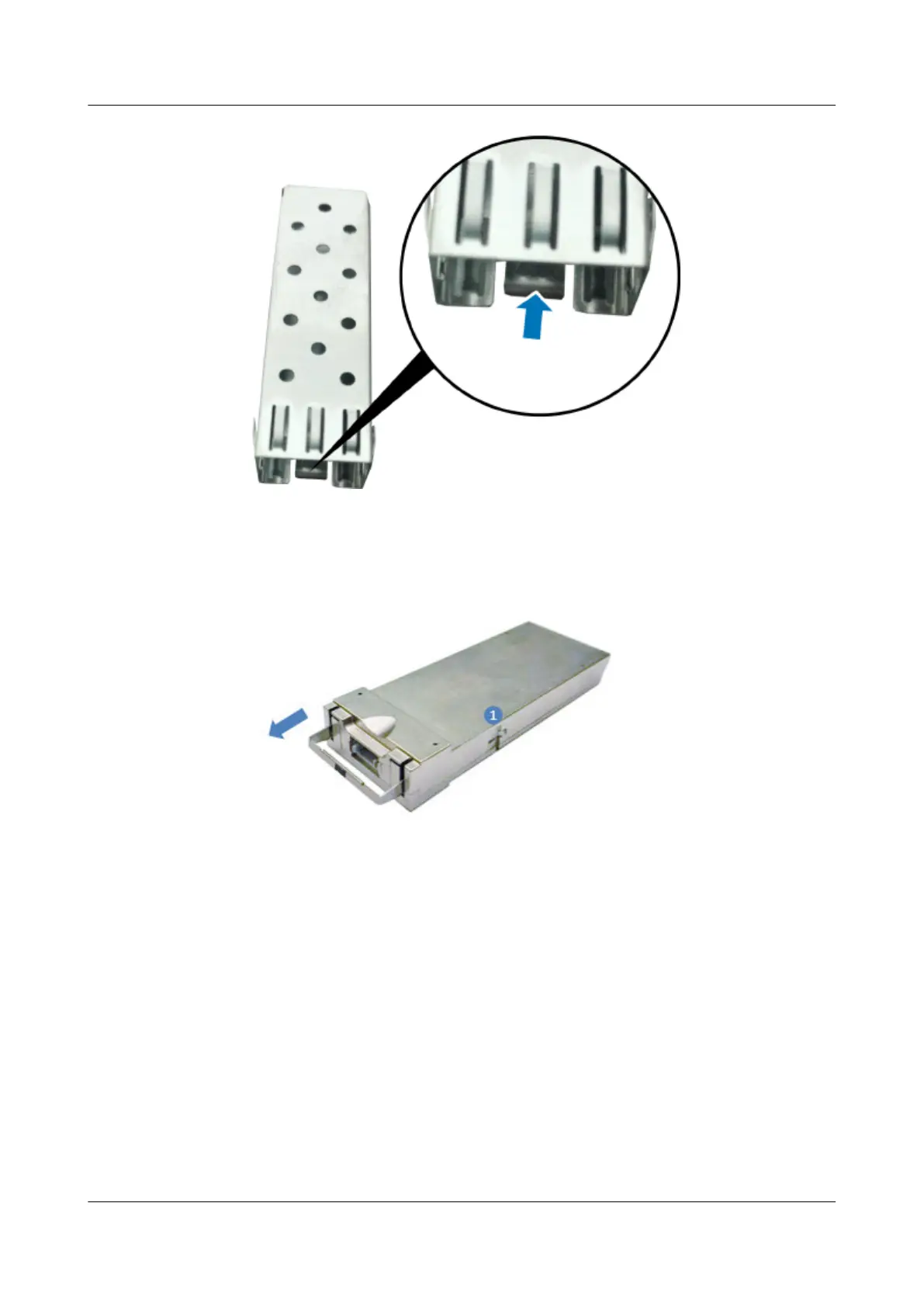

● CFP2 optical module(02311LYG), in Figure 3-41, Push the puller to the
bottom until the latch shown in (1) automatically unlocks the optical module.
Then, horizontally drag the puller to remove the optical module.
Figure 3-41 Removing a CFP2 optical module
● When removing a CFP optical module, loosen the two screw rods of the
module and then remove the module slowly. Do not directly drag the optical
ber to pull out the optical module or forcibly pull out the optical module.
HUAWEI NetEngine 8000 F
Hardware Guide 3 Hardware Description
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 109
