Figure 4-7 Positioning the cabinet
The method for positioning the cabinet described in this document is only for
reference. Follow the engineering drawing to position the cabinet in the actual
installation.
2. Determining installation holes for the cabinet.

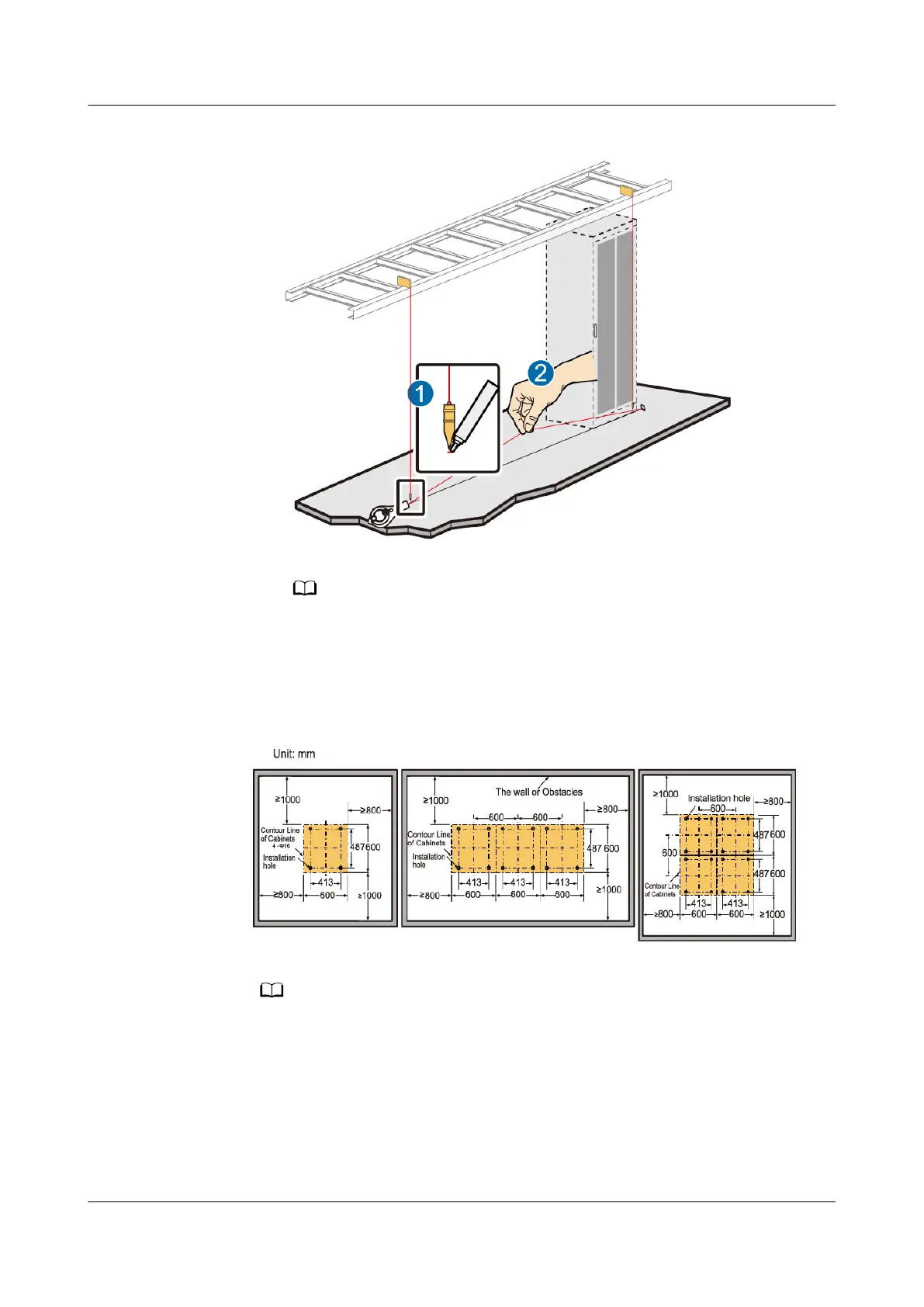

Figure 4-8 Determining installation holes for the cabinet
The spacing between the rear door of the front access cabinet and the wall or any
other obstacles should be no less than 100 mm.
3. Conrming the position of the drill holes.
a. Lay out the templates side by side and ensure that there is 600 mm
between the center lines of two adjacent templates.
b. Use a marker to mark installation holes on the concrete
oor.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 356
