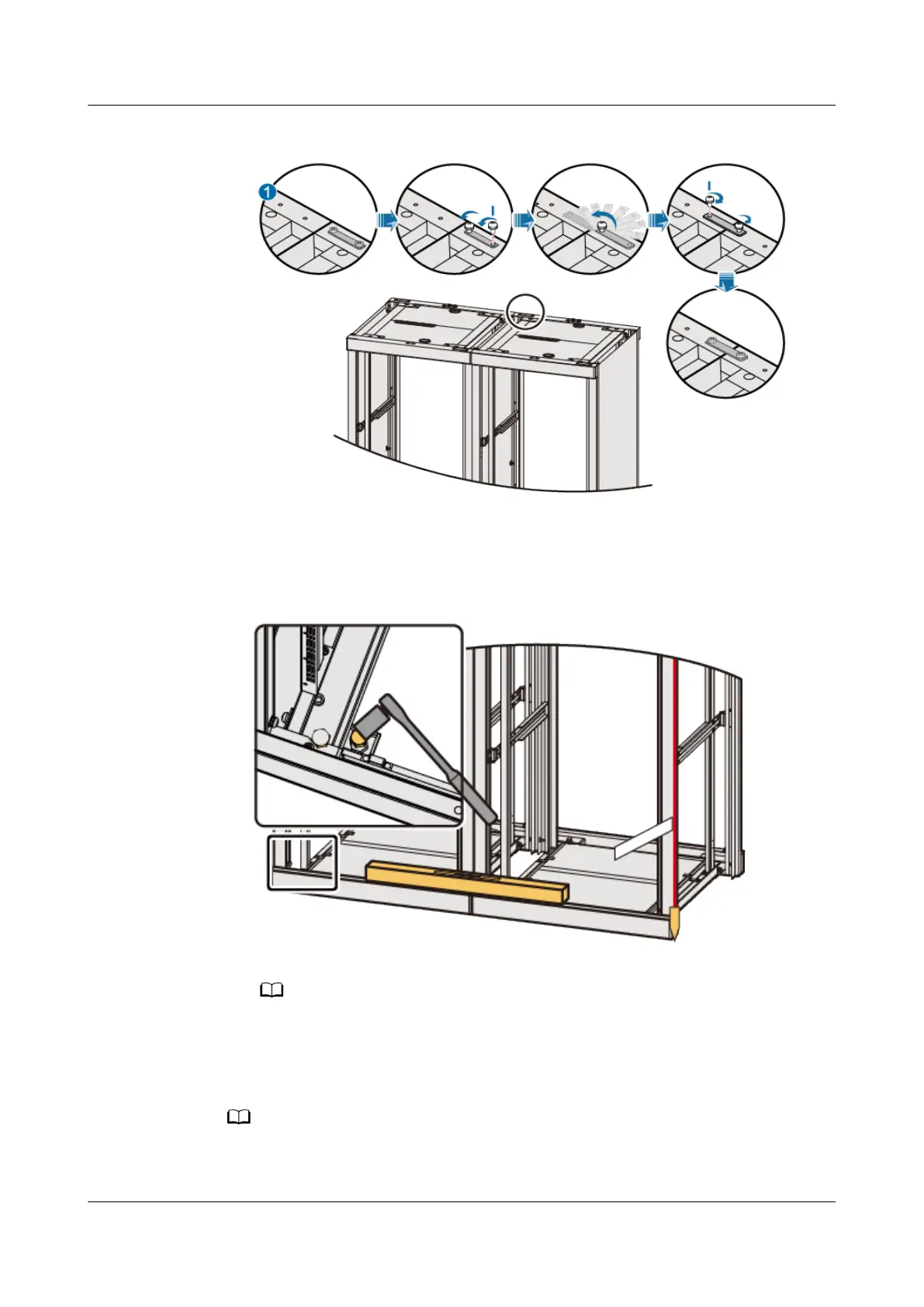

Figure 4-14 Installing the connection plates
2. Use the spirit level and the plumb line to verify that the bottom line of the
cabinet is horizontal and the front line of the column is vertical. If the cabinet
is not horizontal, adjust the adjusting anchor by using a socket wrench.
Figure 4-15 Leveling the cabinet
Both the gap between cabinets and the vertical deviation should be less than 3 mm.
Installing cabinet doors
Install the cabinet door after the inside components and cables. To install the components
inside the cabinets and cables, see the Installaiton Guide.
