c. If the support is not horizontal, put pads under the support.

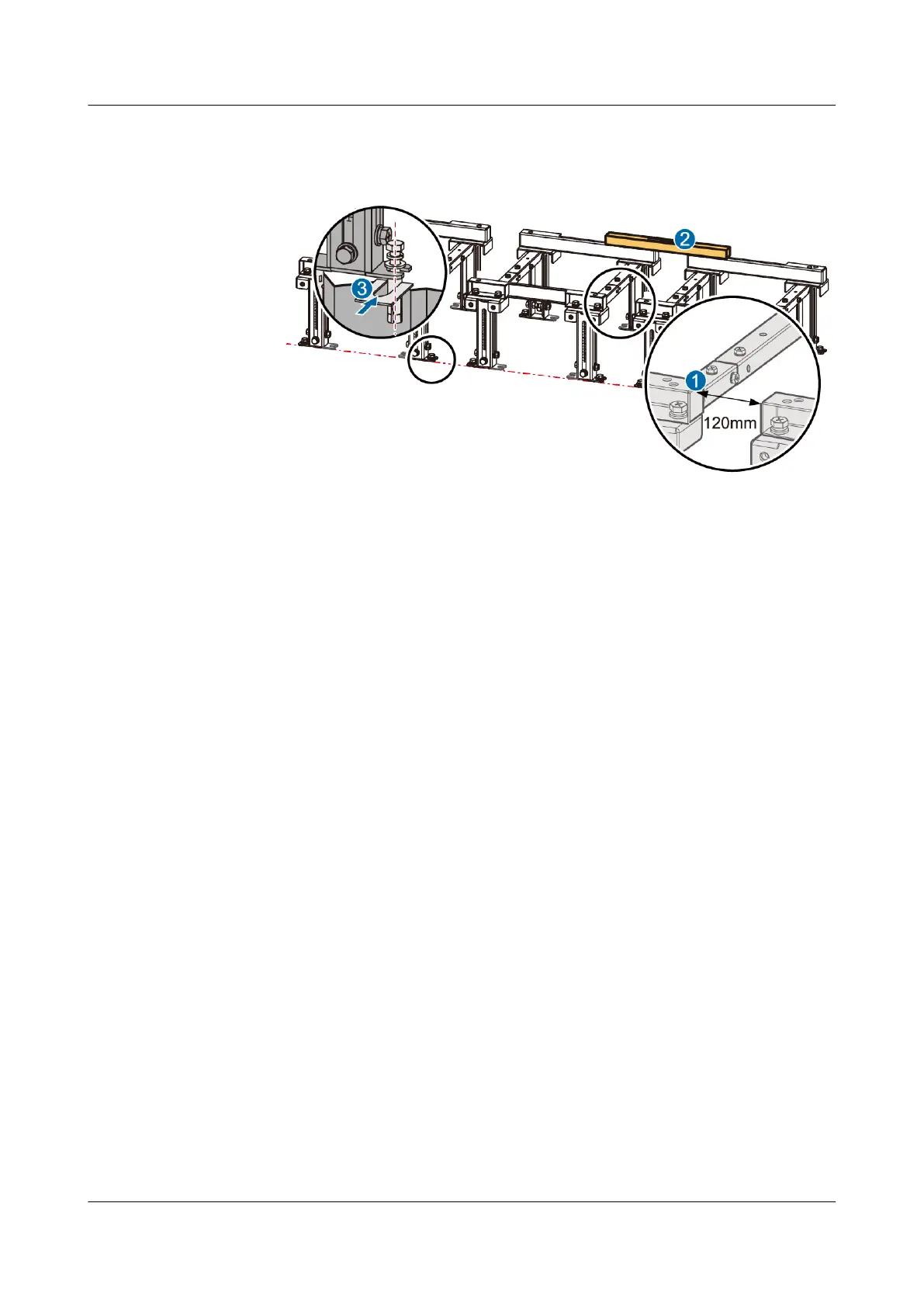

Figure 4-25 Installing the supports in a row
Installing the Cabinet
1. Placing the cabinet.
a. Place the cabinet on the guide rails, and align the installation holes of
the cabinet with the holes of the guide rails.
b. Fit the spring washer,
at washer and insulation tube on the four M12x35
bolts. Insert them into the installation holes and tighten the bolts a bit,
but do not fasten them.
c. Lift one side of the cabinet and insert the insulation plate under the
cabinet. Insert another insulation plate under the other side of the
cabinet. Ensure that the gaps properly lock the expansion bolts.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 367
