Figure 4-26 Placing the cabinet

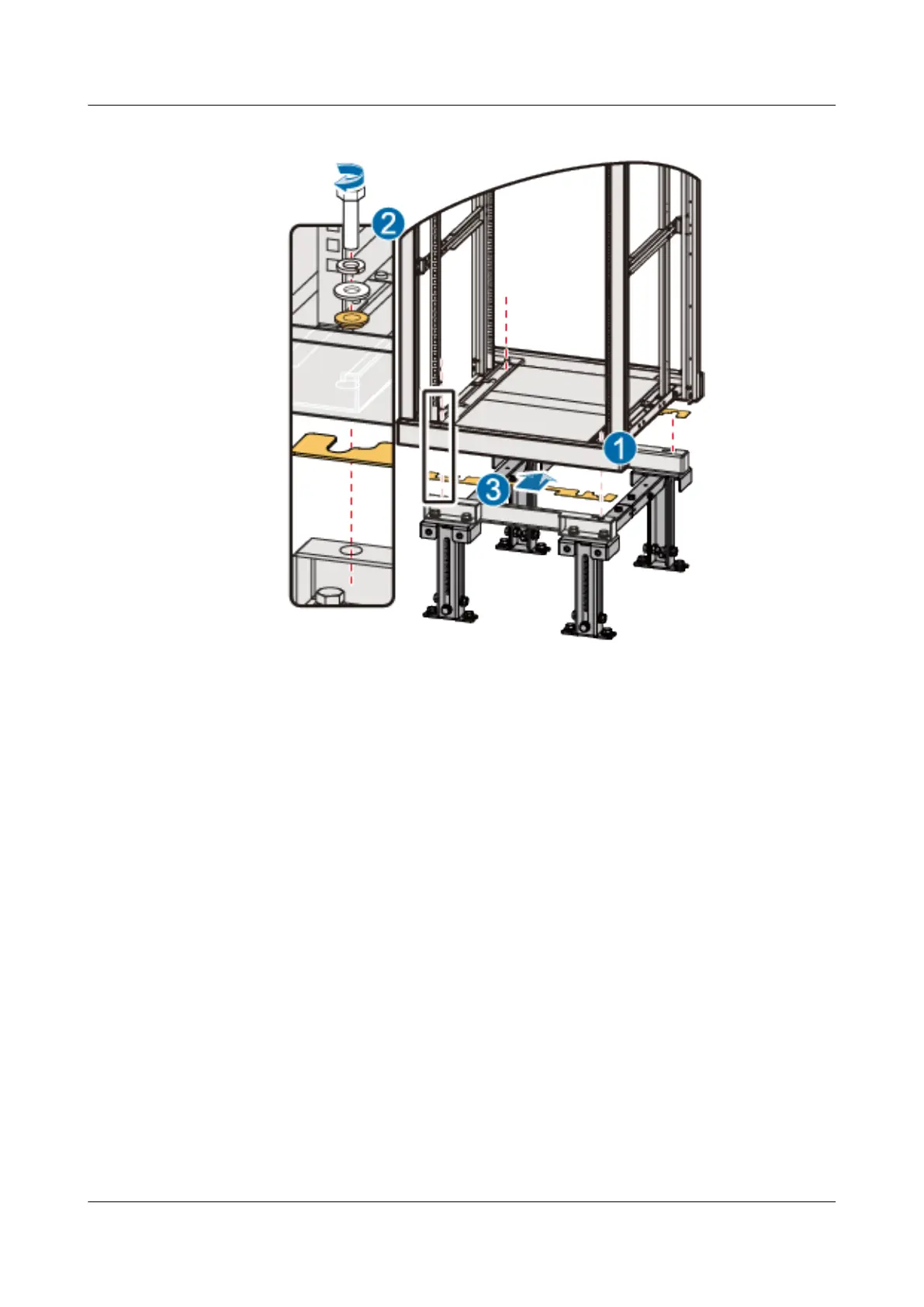

2. Leveling and xing the cabinet.
a. Remove the four adjusting bolts attached on the bottom enclosure frame,
install them on the adjusting nuts.
b. Check whether the cabinet is horizontal or vertical by using a spirit level
and a plumb line respectively.
c. If the cabinet is not horizontal,use a socket wrench to screw the adjusting
bolts at the bottom.
d. Lift one side of the cabinet and insert when the cabinet is horizontal,
screw the four M12x35 bolts to 45 N·m with a torque wrench.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 368
