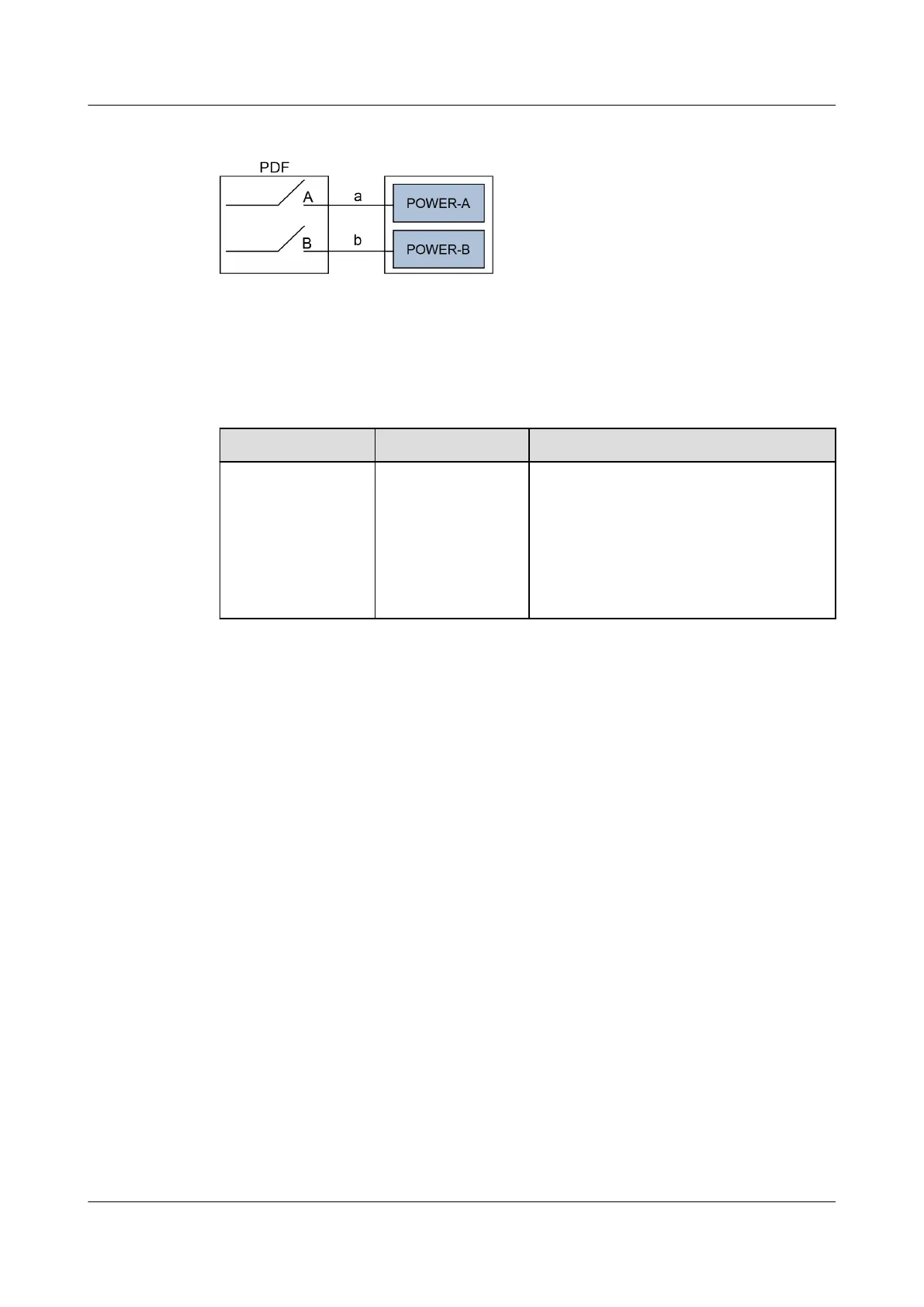

Figure 4-59 Schematic diagram of the AC power distribution
AC Power Supply System
For cable
specications, see "Hardware Description"-Equipment Cables-Power
Cables.
Table 4-13 PDF circuit breaker
specications
Item Description Remarks
Circuit breaker of
each channel
≥10 A
NOTICE
The circuit breaker
current must not
be greater than
the maximum
derating current of
the device.
For hierarchical power supplying
protection, the current of the circuit
breaker at the user side should be no
less than 10 A.
Installing AC Power Cables
1. Route AC power cables along the cable ladder and lay them on the chassis.
2. Insert the AC power cable to the AC input port and secure it using the loose-
proof pinch as shown in Figure 4-60. Connect the other end of the AC power
cable to the PDF of the equipment room.
