Precautions
● To ensure that system heat dissipation is not aected, a fan module must be
replaced within one minute.
● The fans are exposed on the left side of the fan tray. Keep your ngers,
clothing, and jewelry away from the fans. Always handle the fan tray by the
handle.
● Do not touch the fan when the fan is rotating.
Tools
● ESD wrist strap or ESD gloves
Procedure
1. Check the location of the fan module to be replaced.
Before removing the old fan module, check its location, for example, the
cabinet and chassis where the fan module resides. Then,
nd the fan module
to be replaced in the chassis and attach a label to the panel to identify the
fan module to avoid misoperation.
2. Wear the ESD wrist strap and connect the ground terminal to the ESD jack on
the chassis.
3. Hold the handle on the fan module with one hand and pull part of it. Support
the bottom of the fan module with the other hand until the fan module is
completely pulled out, as shown in Figure 4-75.

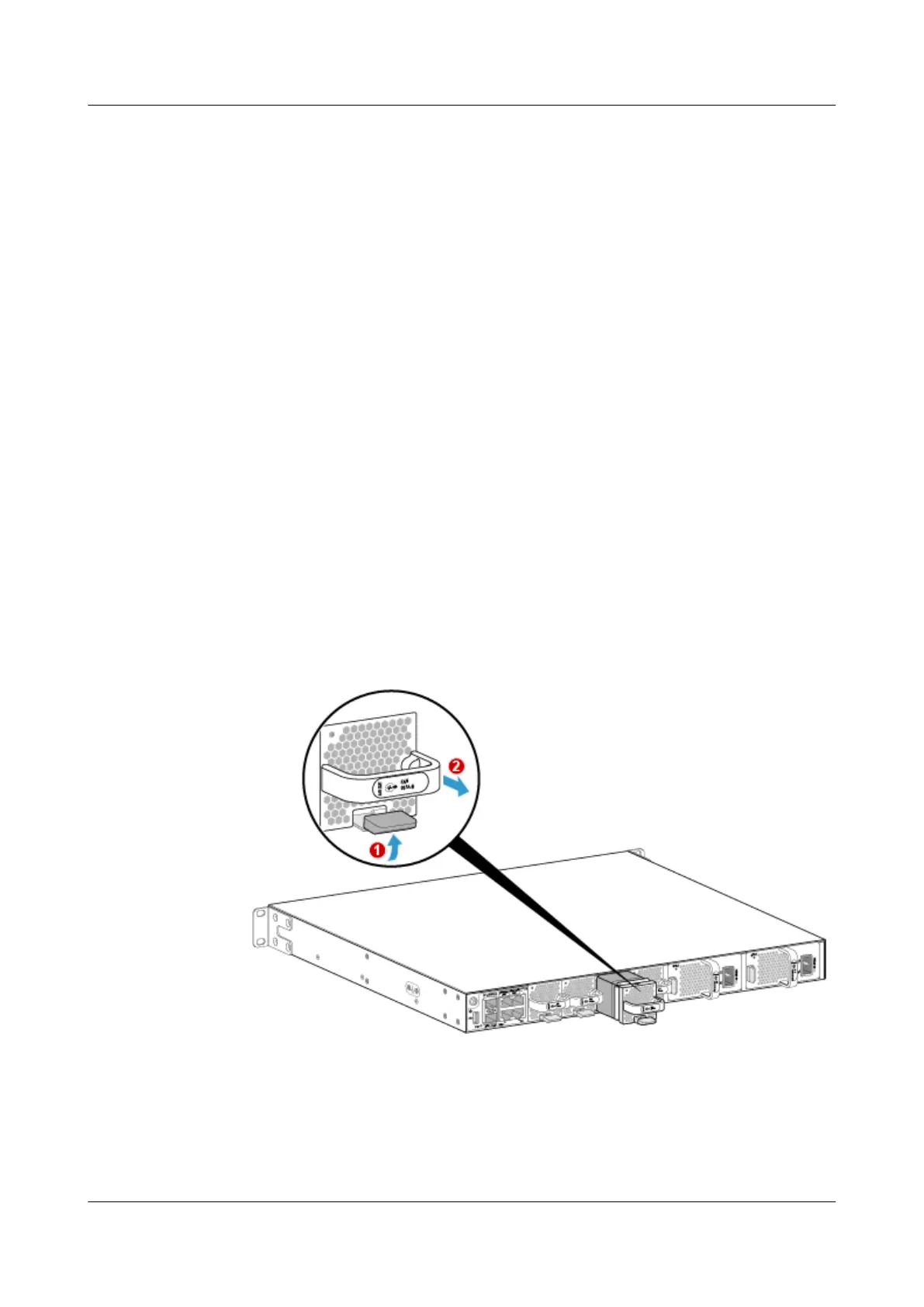

Figure 4-75 Pull out the fanmodule
4. Hold the handle on the new fan module with one hand and support the
bottom of the fan module with the other hand. Then, insert the fan module
into the chassis, as shown in Figure 4-76.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 435
