● Before power-on, check whether the positive and negative conducting
wires of all power cables are correctly connected. Any incorrect power
cable connection may cause damage to equipment or unexpected injuries
of human body.
● If the conducting wires are inserted properly, you will hear two click
sounds.
● When a cable is connected to an SPC1 connector, if the connector is not
removed and the cable is reversely connected, the following issues may
occur: sparking, fuse blowout, and connector damage. Therefore, remove
the SPC1 connector before the cable connection.
The cross-sectional area of the cable supported by the SPC1 connector ranges from 1.5
mm
2
to 10 mm
2
or 0.0023 in.
2
to 0.016 in.
2
.

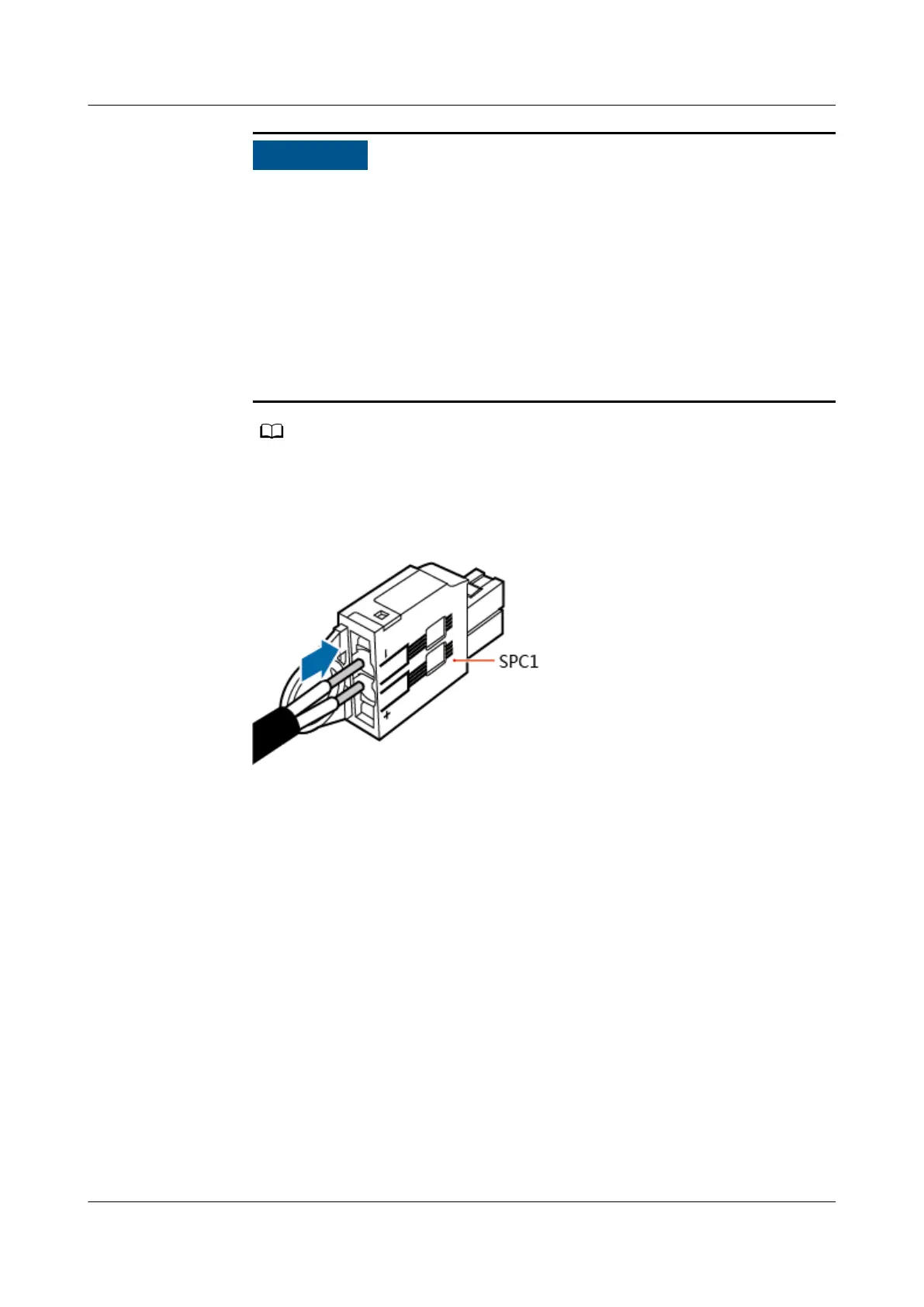

Figure 4-99 Inserting the conducting wires
3. After the conducting wires are inserted, check whether they are secured by
springs from the visible window, as shown in Figure4. Pull each conducting
wire slightly to check whether it is securely connected. If the conducting wire
is pulled out a bit or a spring presses the insulation layer, remove and cut the
split conducting wire, and then strip the jacket and install the conducting wire
again.
