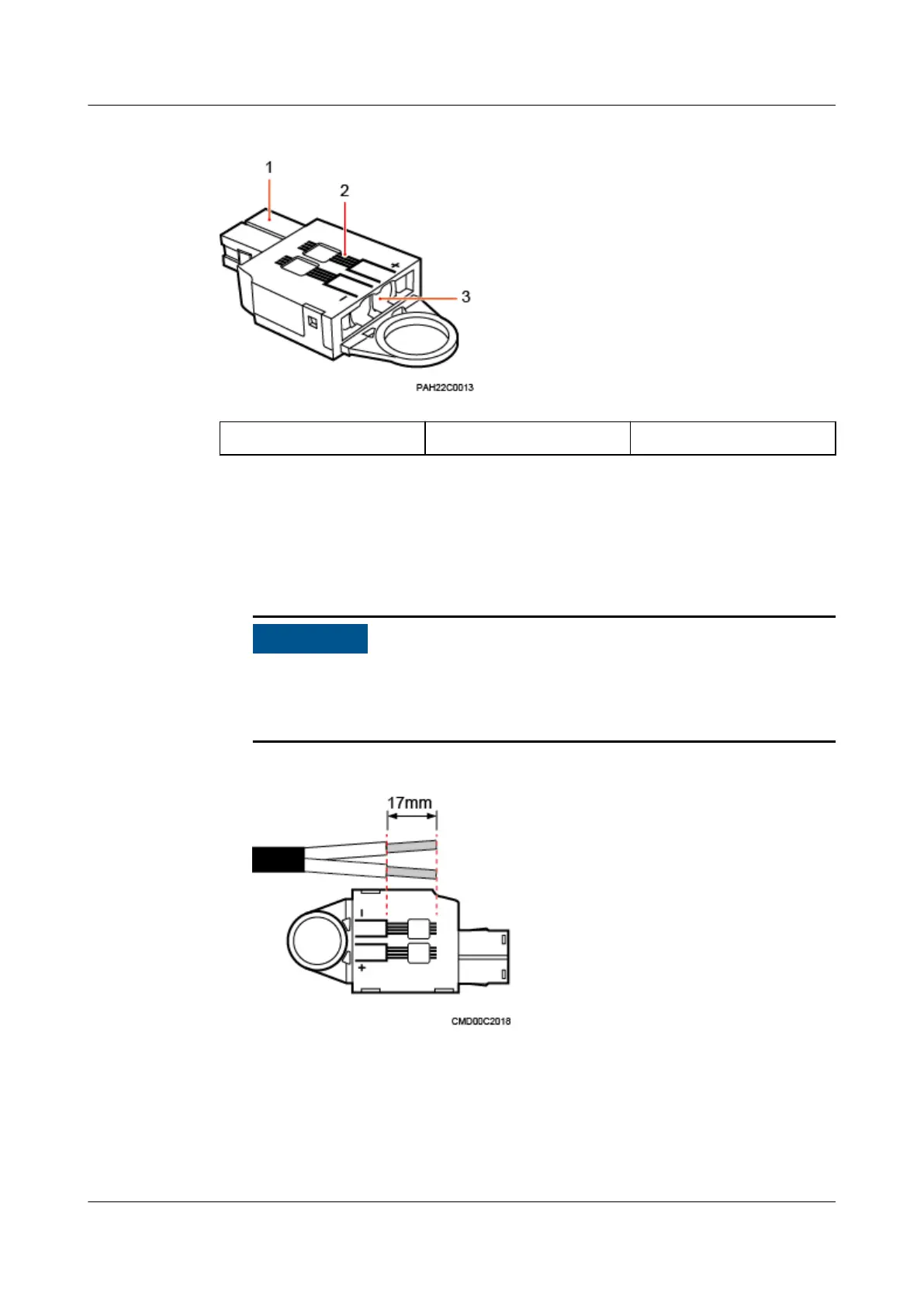

Figure 4-97 Connector
(1) SPC1 (2) Scale (3) Hole for the cable
Procedure
1. Strip the jacket
o the cable according to the scale on the connector, as
shown in Figure2.
NO TICE
● The gure for stripping the jacket shows the minimum length of the jacket
to be stripped o the cable.
● Ensure that the wires do not split during cable stripping.
Figure 4-98 Stripping the jacket o the cable
2. Insert the positive conducting wire to hole 1 (+) and the negative conducting
wire to hole 2 (–), as shown in Figure3.
