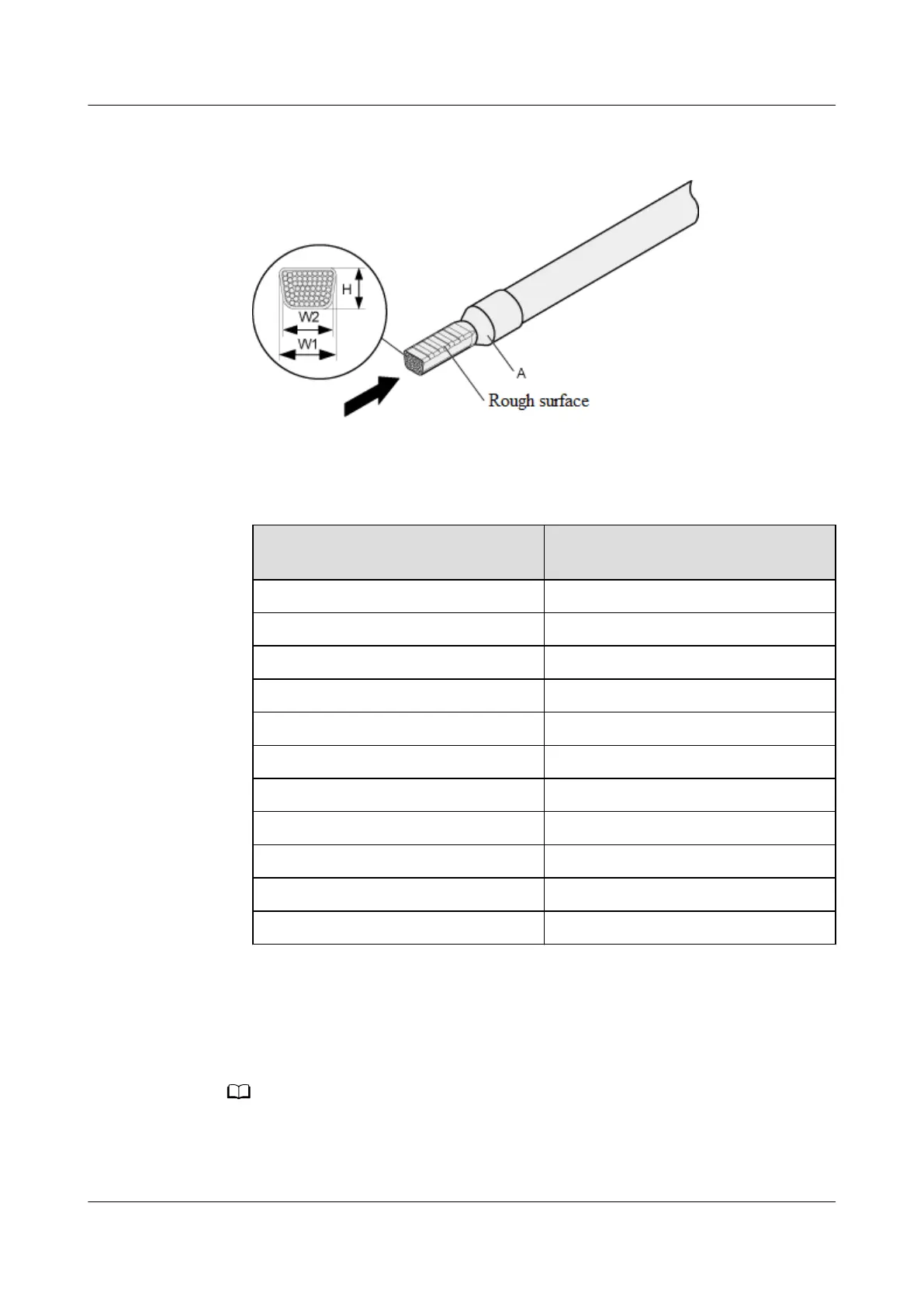

Figure 4-96 Crimping the joint parts of the cord end terminal and the
conductor
4. Check the maximum width of the crimped terminal.
Table 4-22 lists the
maximum width of a crimped terminal.
Table 4-22 Maximum width of a crimped terminal
Cross-Sectional Area of the
Terminal (mm
2
)
Maximum Width of the Crimped
Terminal — W1 (mm(in.))
0.25 1
0.5 1
1.0 1.5
1.5 1.5
2.5 2.4
4 3.1
6 4
10 5.3
16 6
25 8.7
35 10
Assembling an SPC1 Connector and the Power Cable
Context
NO TE
Colors and exteriors of cables may vary with countries and regions.
Figure1shows an SPC1 connector.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 454
