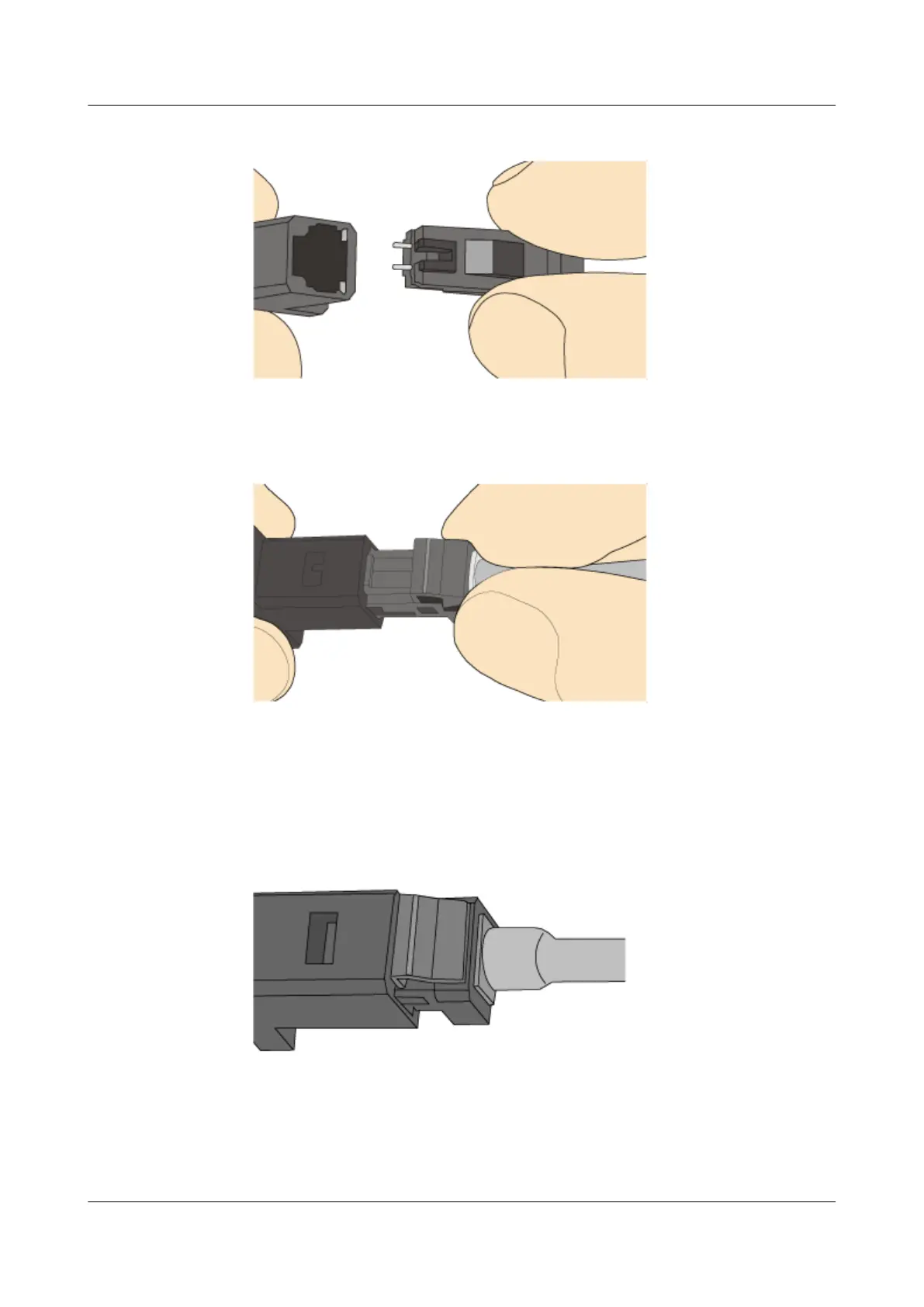

Figure 4-155 Aligning the male connector with the female connector
3. Align the ber adapter along the axis and gently push the ber plug, as
shown in Figure 4-156.
Figure 4-156 Feeding the male connector into the female connector
4. When you hear a "click", it has been plugged into place. At this time, the
hook has popped up to lock the
ber plug. Pull gently without loosening, as
shown in Figure 4-157.
Figure 4-157 Installed MTRJ ber connector
5. When disassembling, lightly press the button of the optical ber plug to
disengage the hook from the slot, and gently pull the optical ber plug
housing along the axis, and the disassembly is completed, as shown in Figure
4-158.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 484
