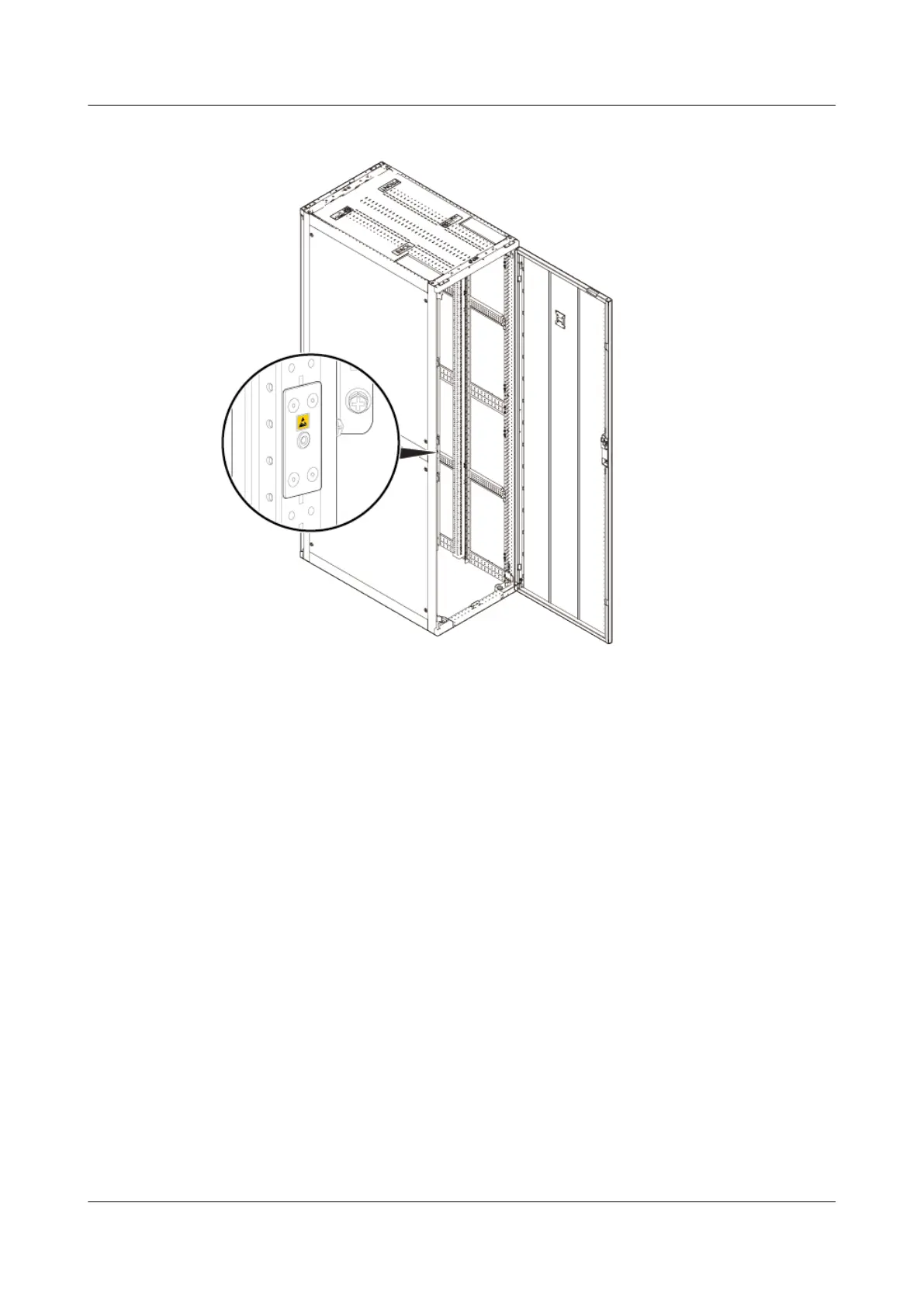

Figure 4-188 ESD jack on the cabinet
Heat Dissipation
The front and rear doors of the cabinet are of mesh construction. Air enters the
chassis from the front door and base and is exhausted through the rear door.
Figure 4-189 shows the
airow.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 527
