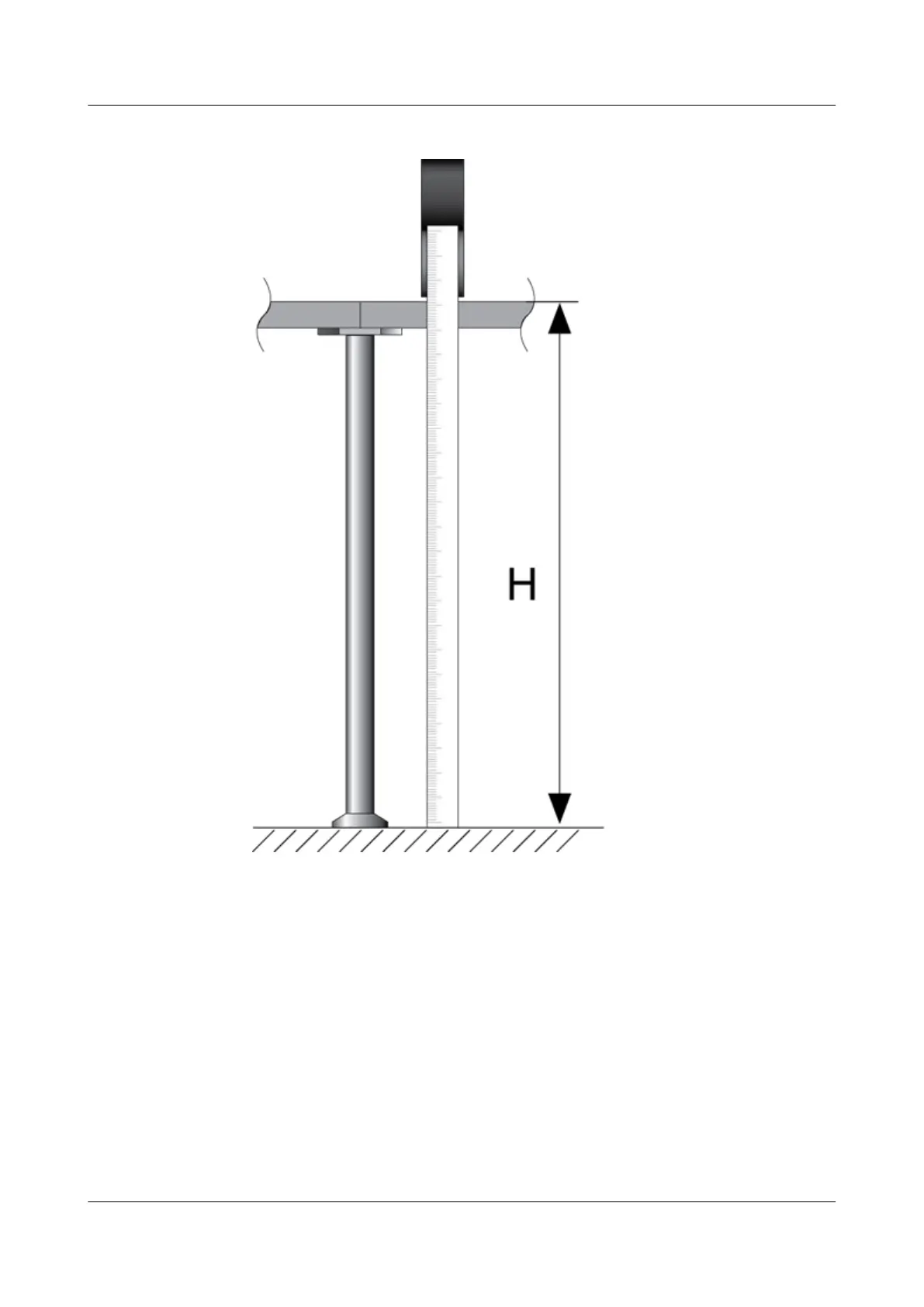

Figure 4-195 Measuring the ESD oor height
2. Adjust the height of the cabinet stand according to the height of the ESD
oor. See callout 1 in Figure 4-196.
3. Tighten the height locking bolts on both sides. Do not tighten the bolts
completely; leave some space for leveling the cabinet stand. See callout 2 in
Figure 4-196.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 536
