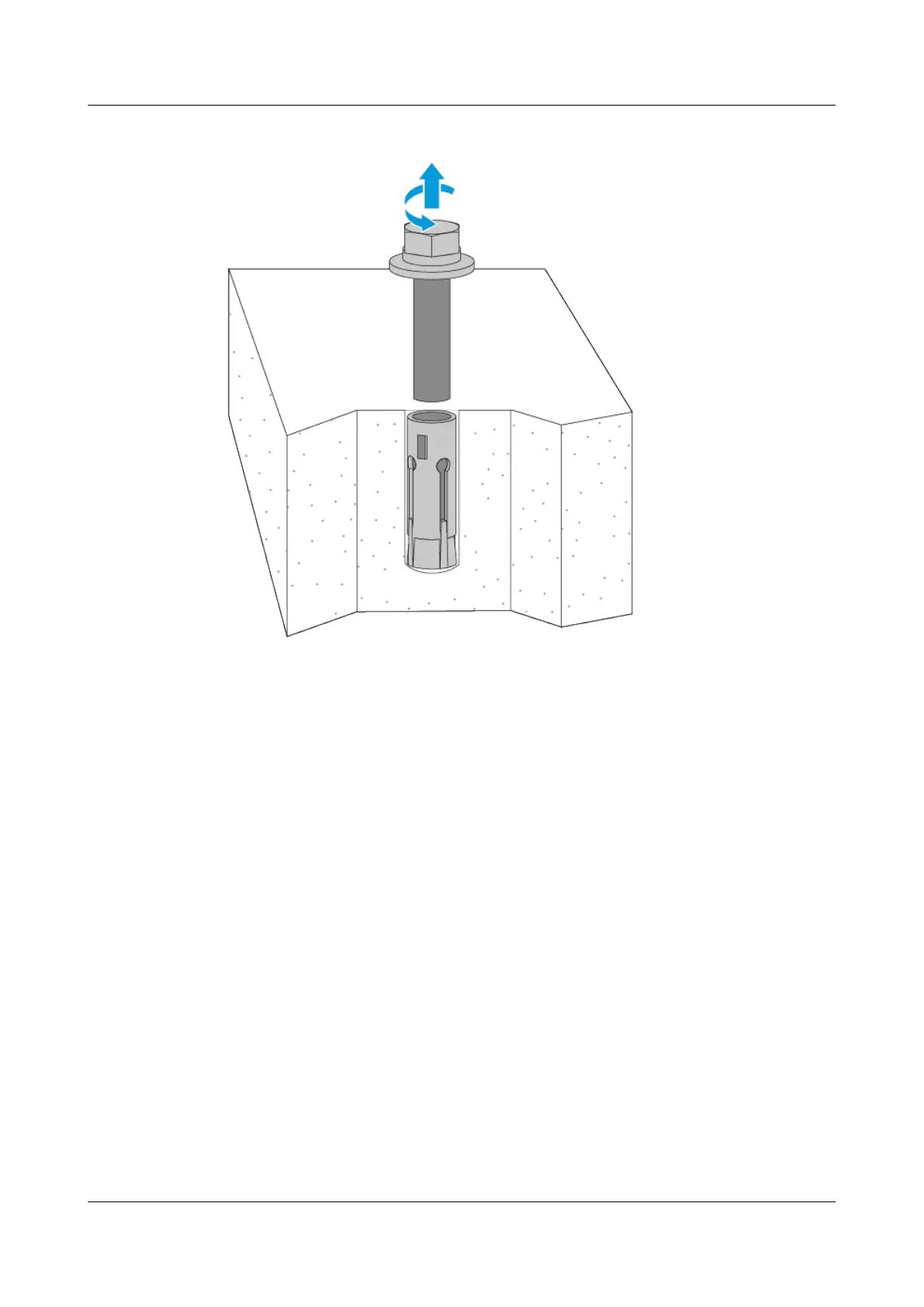

Figure 4-204 Removing the spring washer, at washer, and bolt
----End
Installing the Cabinet Stand
?.1. Installing a Single Cabinet Stand (for Installation of One Cabinet)
Procedure
Step 1 Align mounting holes on the cabinet stand with four expansion bolt mounting
holes on the oor, and install expansion bolts. See callout 1 in Figure 4-205.
Step 2 Use a level check whether the stand is level. See callout 2 in Figure 4-205.
Step 3 If the stand leans, place spacers below the stand. See callout 3 in Figure 4-205.
Step 4 Use a torque socket to fasten the four expansion bolts with a torque of 45 N m.
See callout 4 in Figure 4-205.
