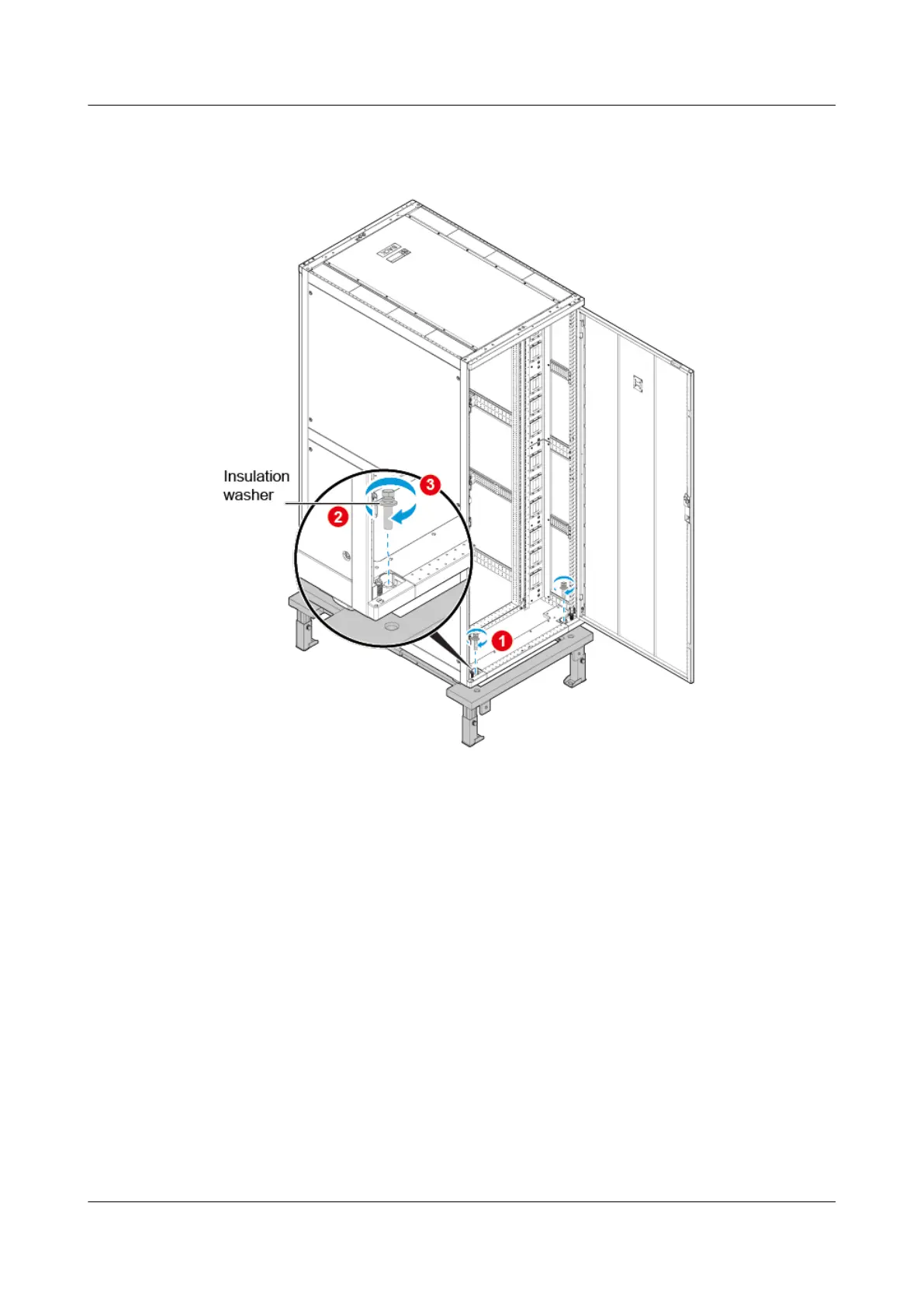

Figure 4-205 Installing a single cabinet stand
----End
?.2. Installing Cabinet Stands Side by Side (for Installation of Two or More
Cabinets)
Procedure
Step 1 Check the stand with a level. See callout 1 in Figure 4-206.
Step 2 If the stand leans, place spacers below the stand. See callout 2 in Figure 4-206.
Step 3 Use a torque socket to fasten the four expansion bolts with a torque of 45 N m.
See callout 3 in Figure 4-206.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 545
