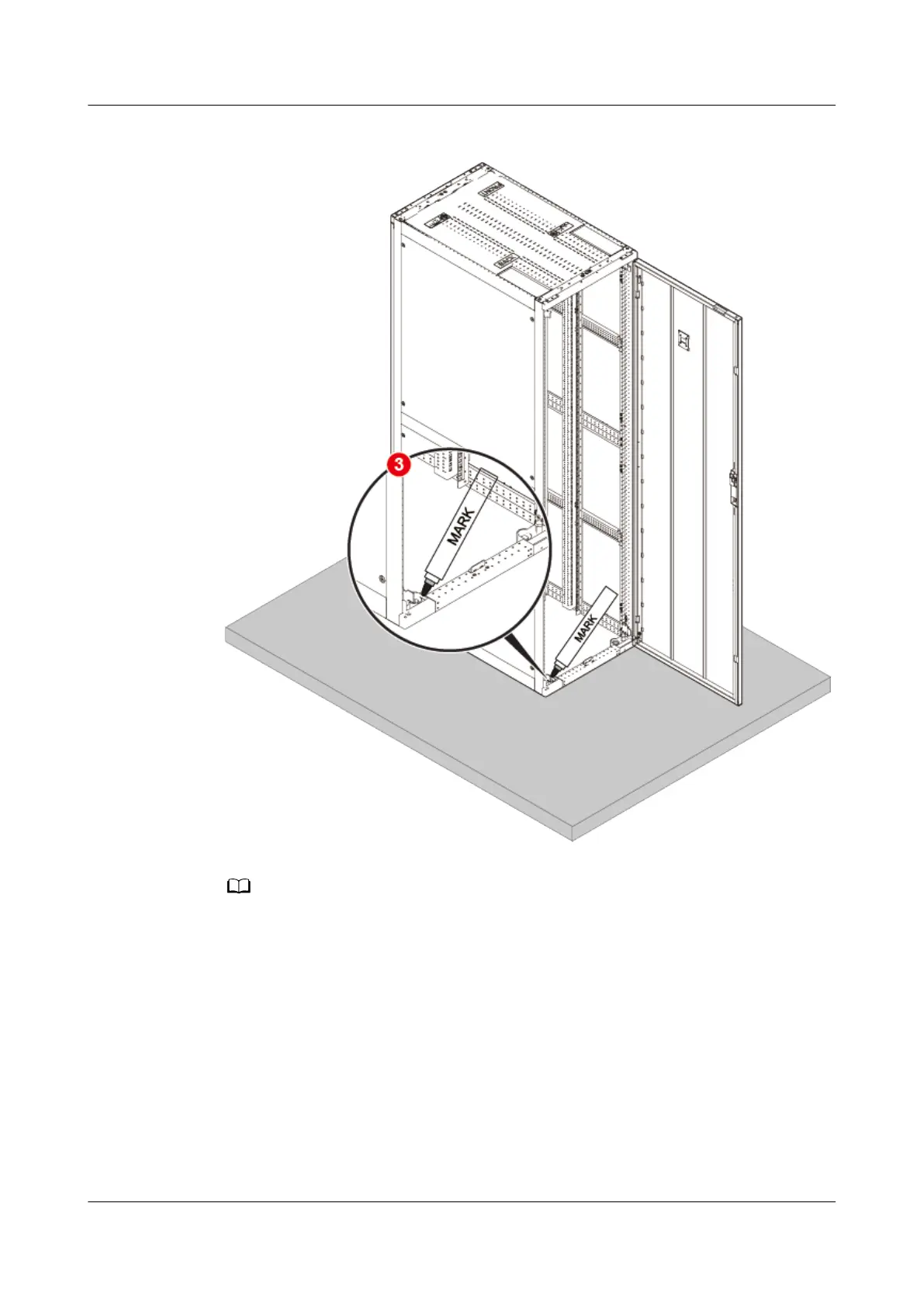

Figure 4-220 Marking the positions for mounting holes
After marking the mounting hole positions, use the measuring tape to measure the hole
distance and adjust the mounting hole positions according to the mounting hole diagram.
----End
Drilling Holes
Precautions
Pay attention to the following points when drilling holes:
● If the
oor is too hard and smooth to position the drill bit, use a nail punch
and hammer to create an indentation for the mounting holes. Then use the
drill bit to
nish drilling holes.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 560
