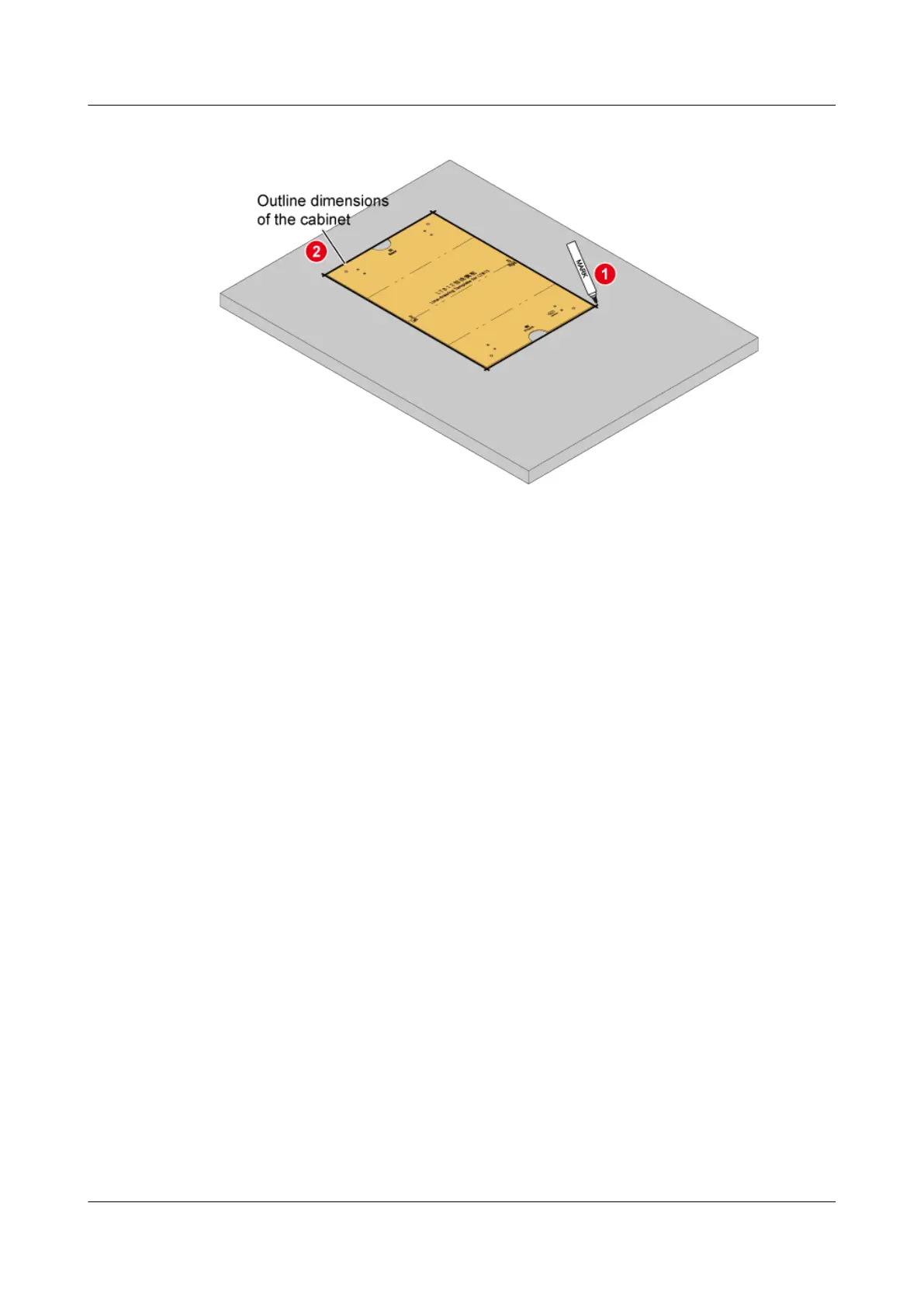

Figure 4-219 Outlining the cabinet's dimensions using a powder marker
Step 3 Move the cabinet to the installation area. Open the front and rear doors, remove
screws from the mounting holes, and mark the positions for mounting holes on
the bottom of the cabinet, as shown in Figure 4-220.
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 559
