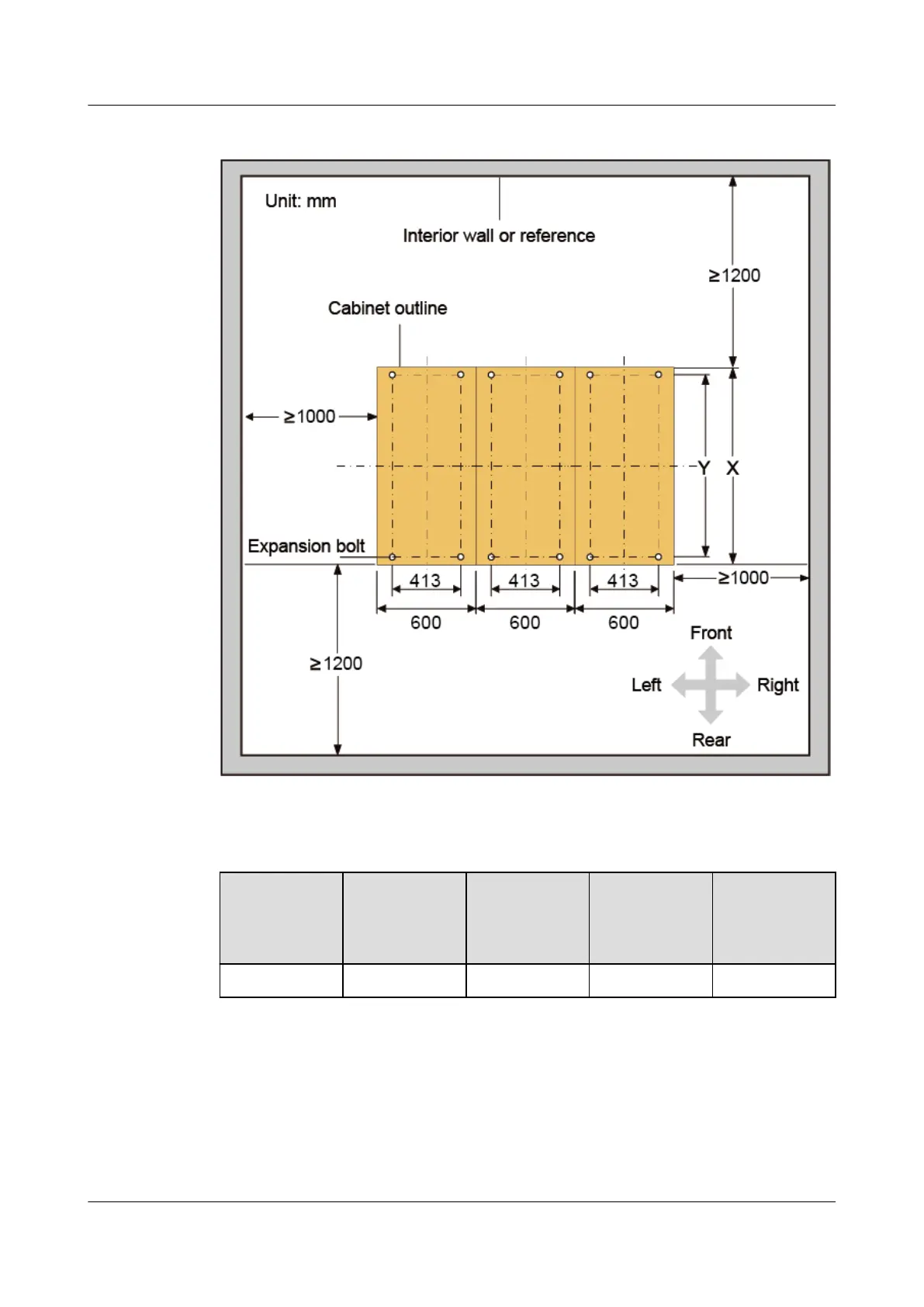

Figure 4-218 Mounting holes for side-by-side cabinet installation
Table 4-49 provides the mounting hole distance for the cabinet.
Table 4-49 Mounting hole distance
Cabinet
Model
Width (mm) Width-wise
Hole Spacing
(mm)
Depth-x
(mm)
Depth-wise
Hole
Spacing-y
(mm)
A610-22 600 413 1000 887
Procedure
Step 1 Use a measuring tape to determine the cabinet installation position according to
the engineering drawing, and mark the endpoints of the cabinet on the oor.
Step 2 Place the mounting hole diagram right at the position where the cabinet is to be
installed, and use a powder marker to outline the cabinet's dimensions.
